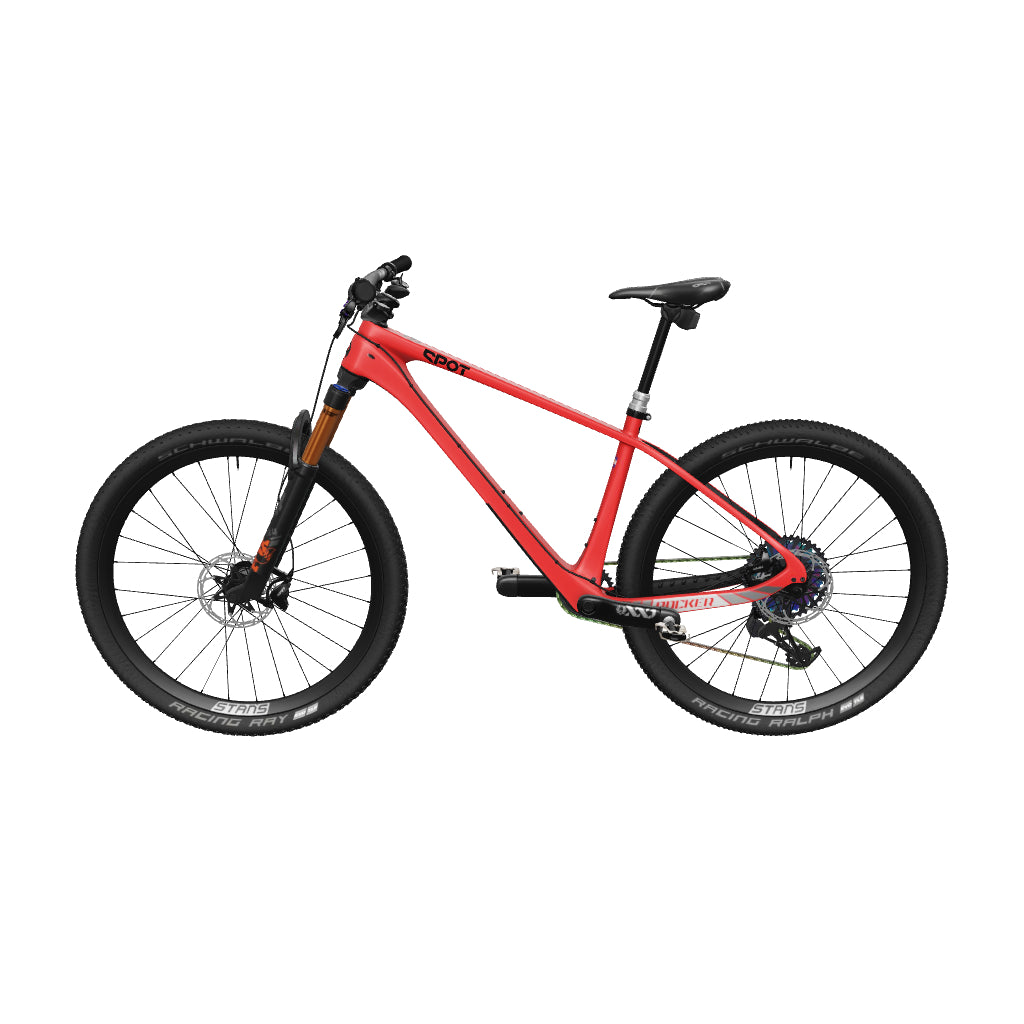

Rocker Geared - 2020
Rated 4.9 out of 5
Based on 8 reviews

$2,399 to $6,699 $2,399

Payments available with . Learn more

Matte Black // Main image // Featured

View the Geometry

Rocker Geared - 2020
Rated 4.9 out of 5
Based on 8 reviews

$2,399 to $6,699 $2,399

Geometry View Kit Details
Frame Size
Find Your Size
Select Height to See Suggestion
Specs View Kit Details
Color Specs

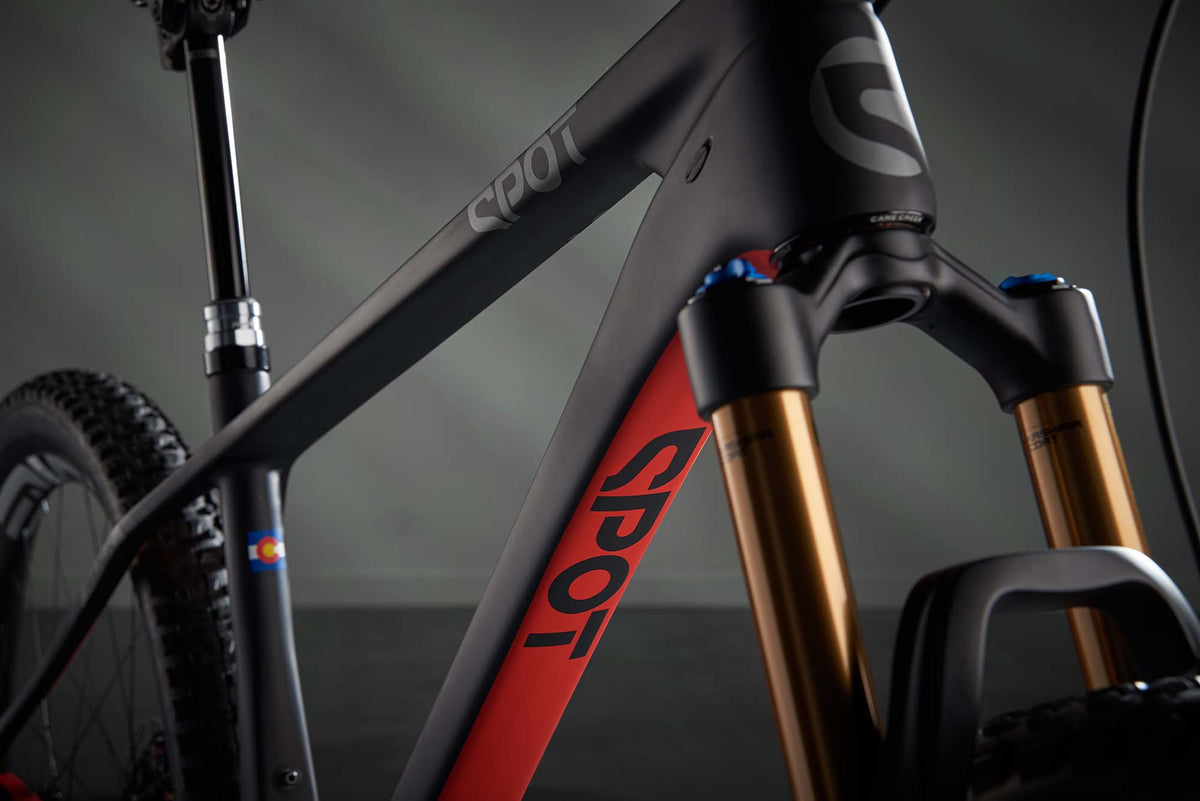

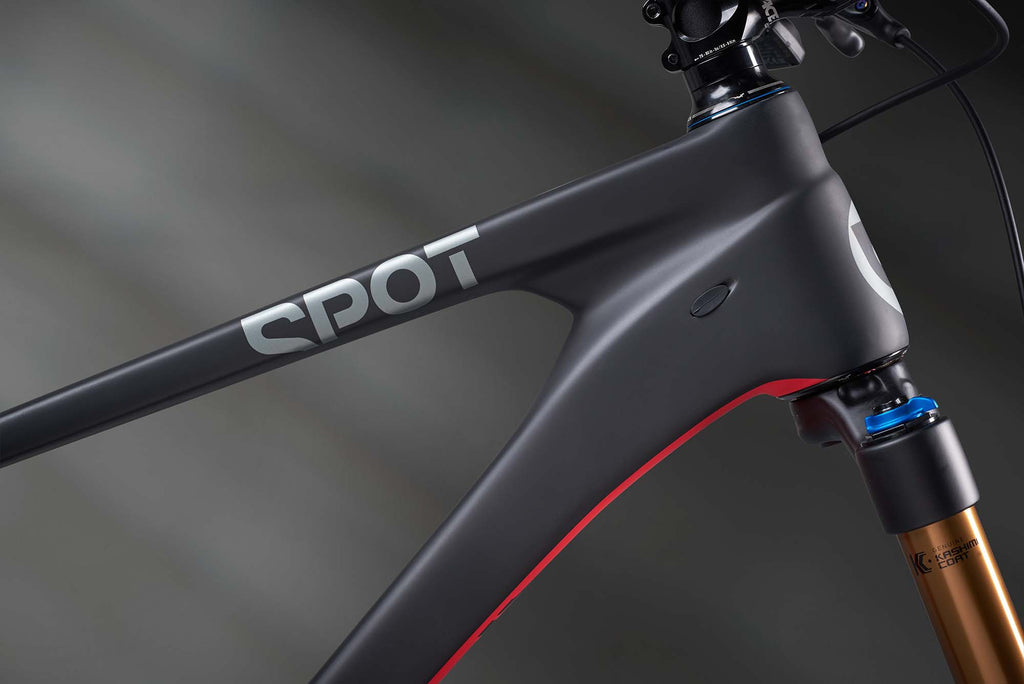

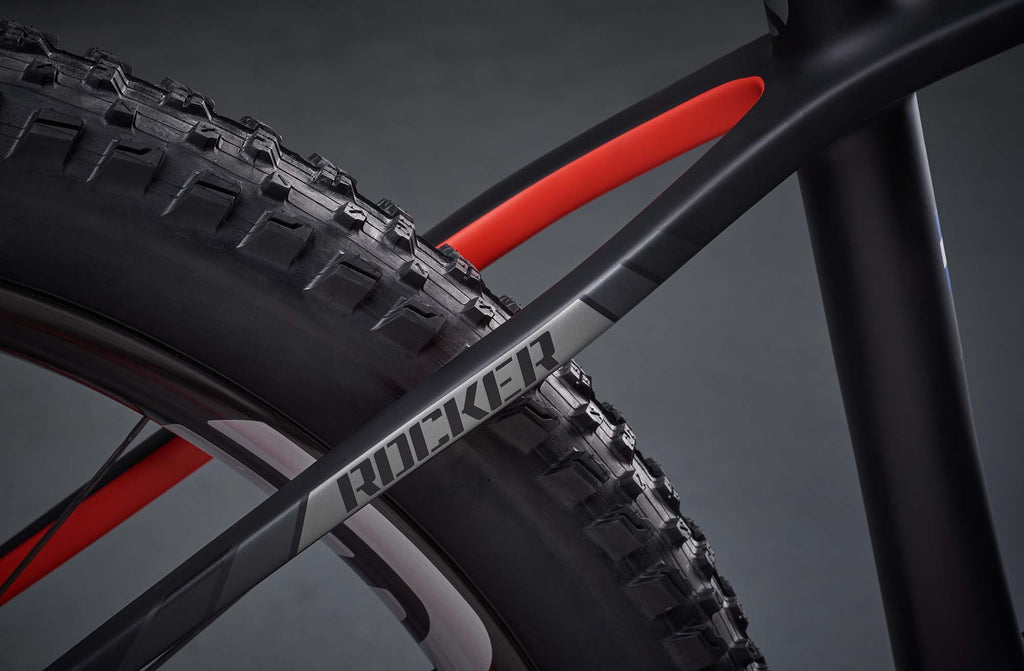

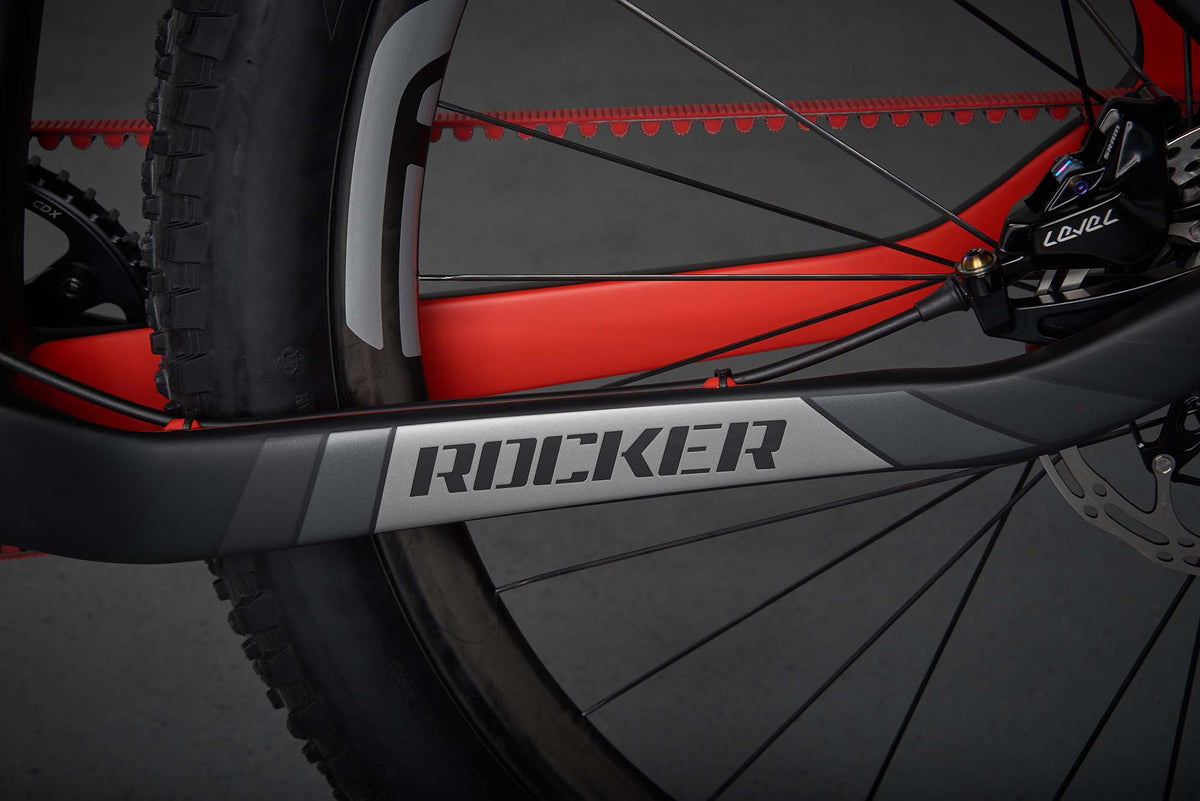

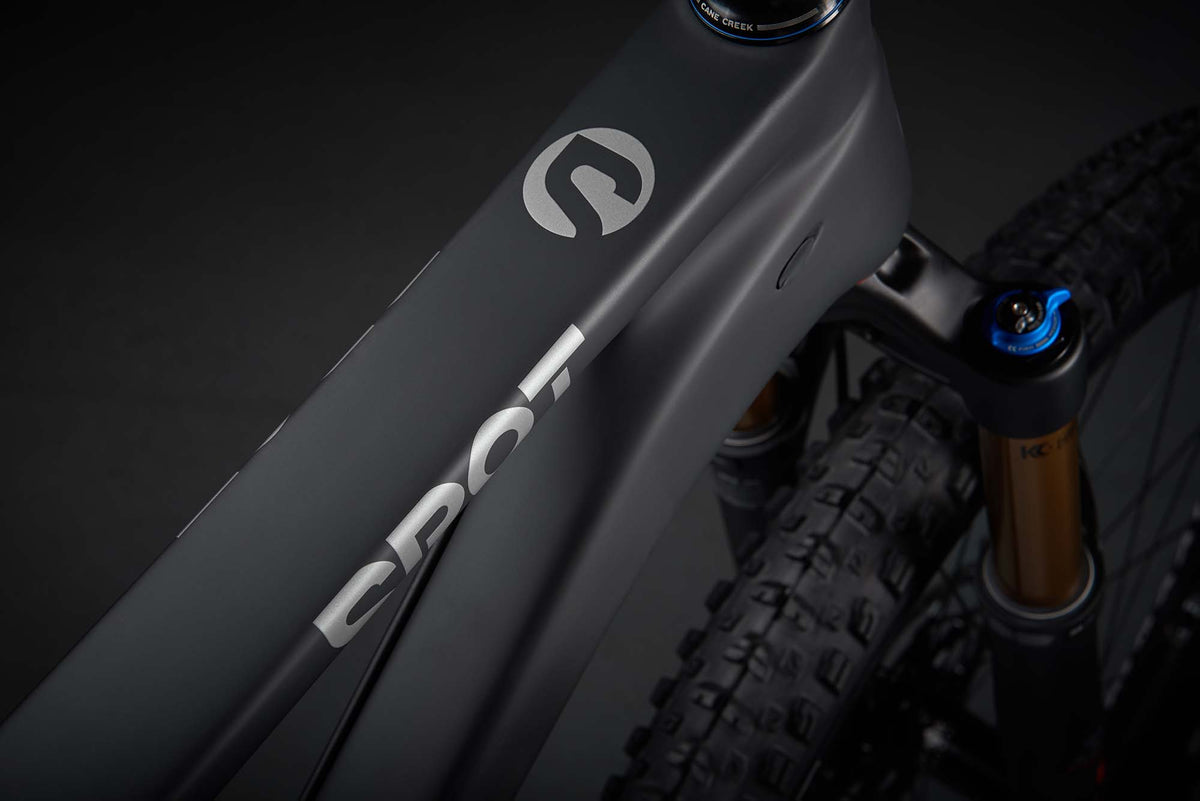

Matte Black

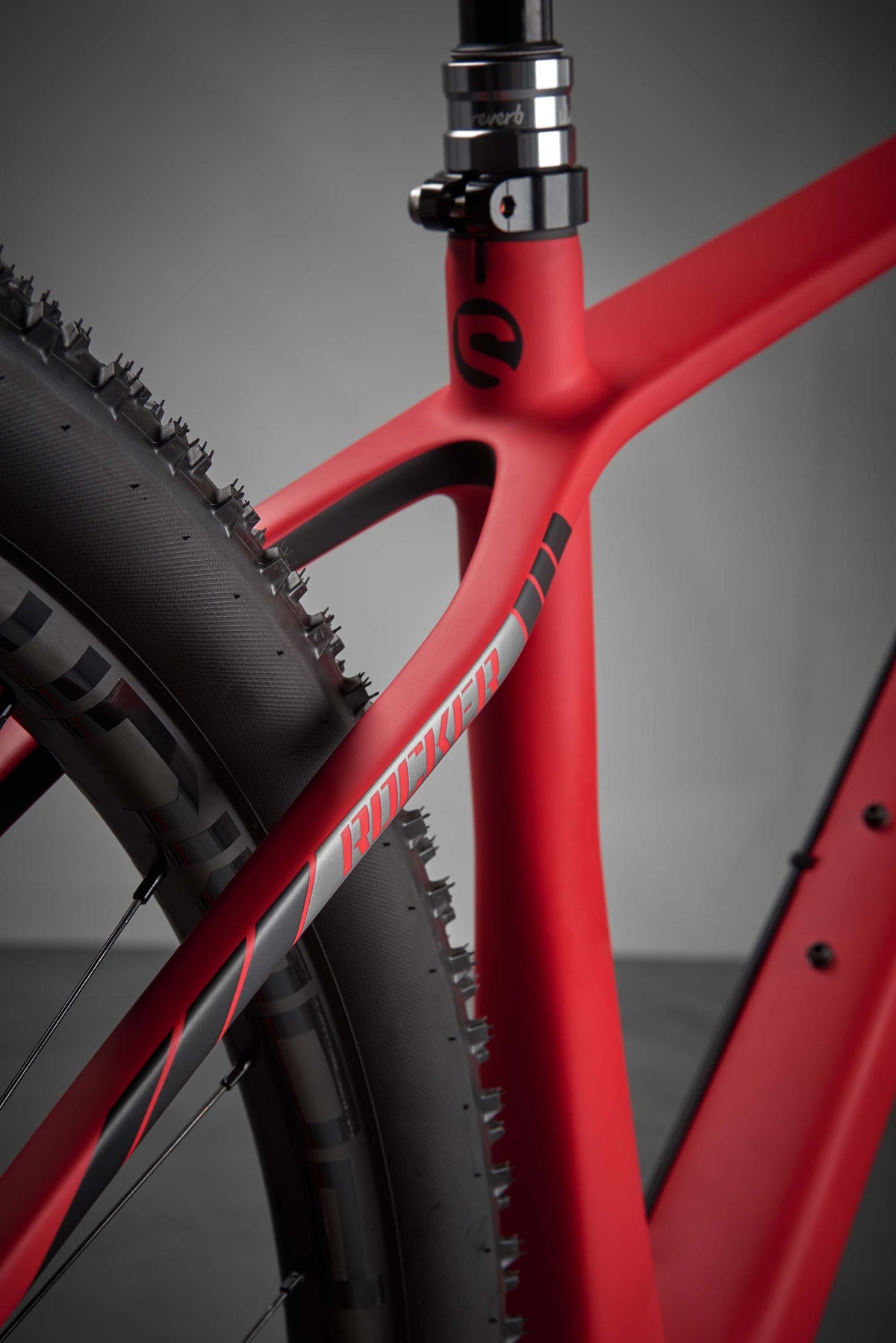

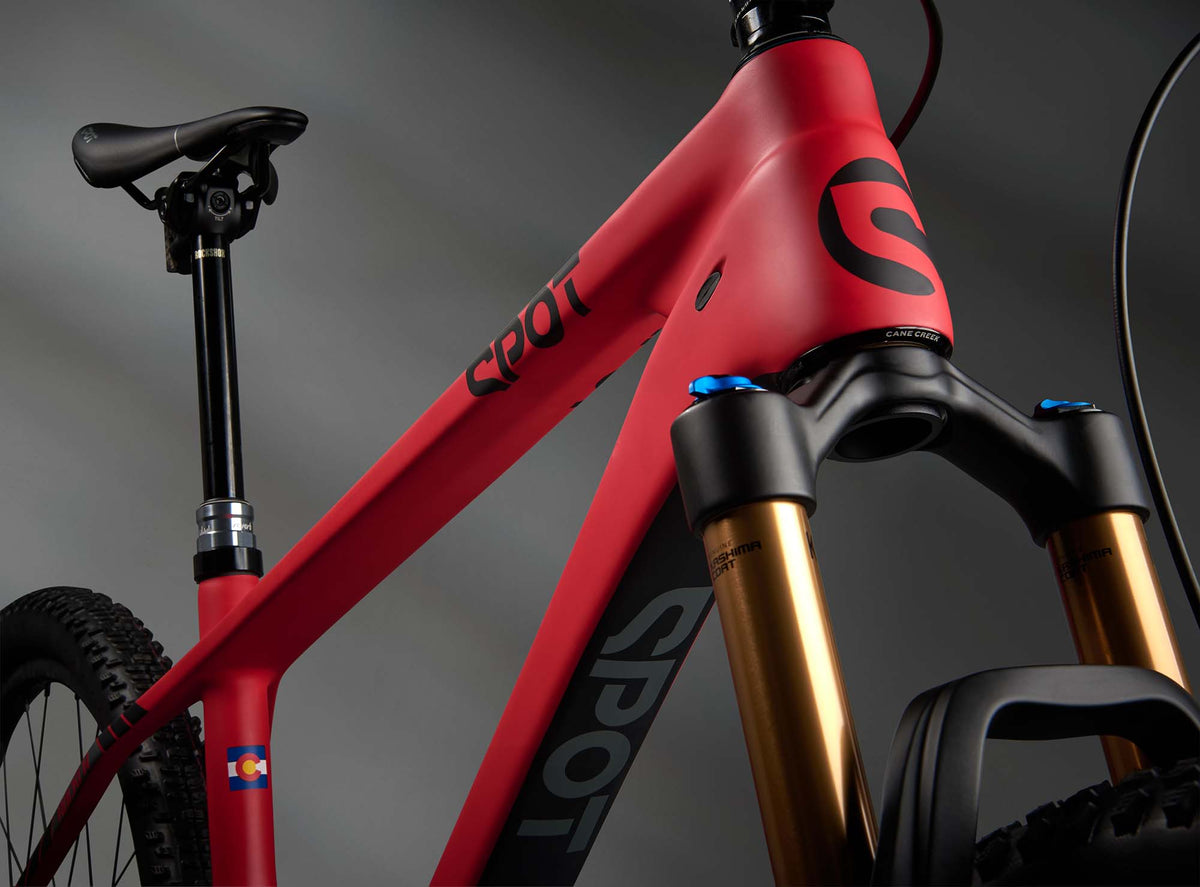

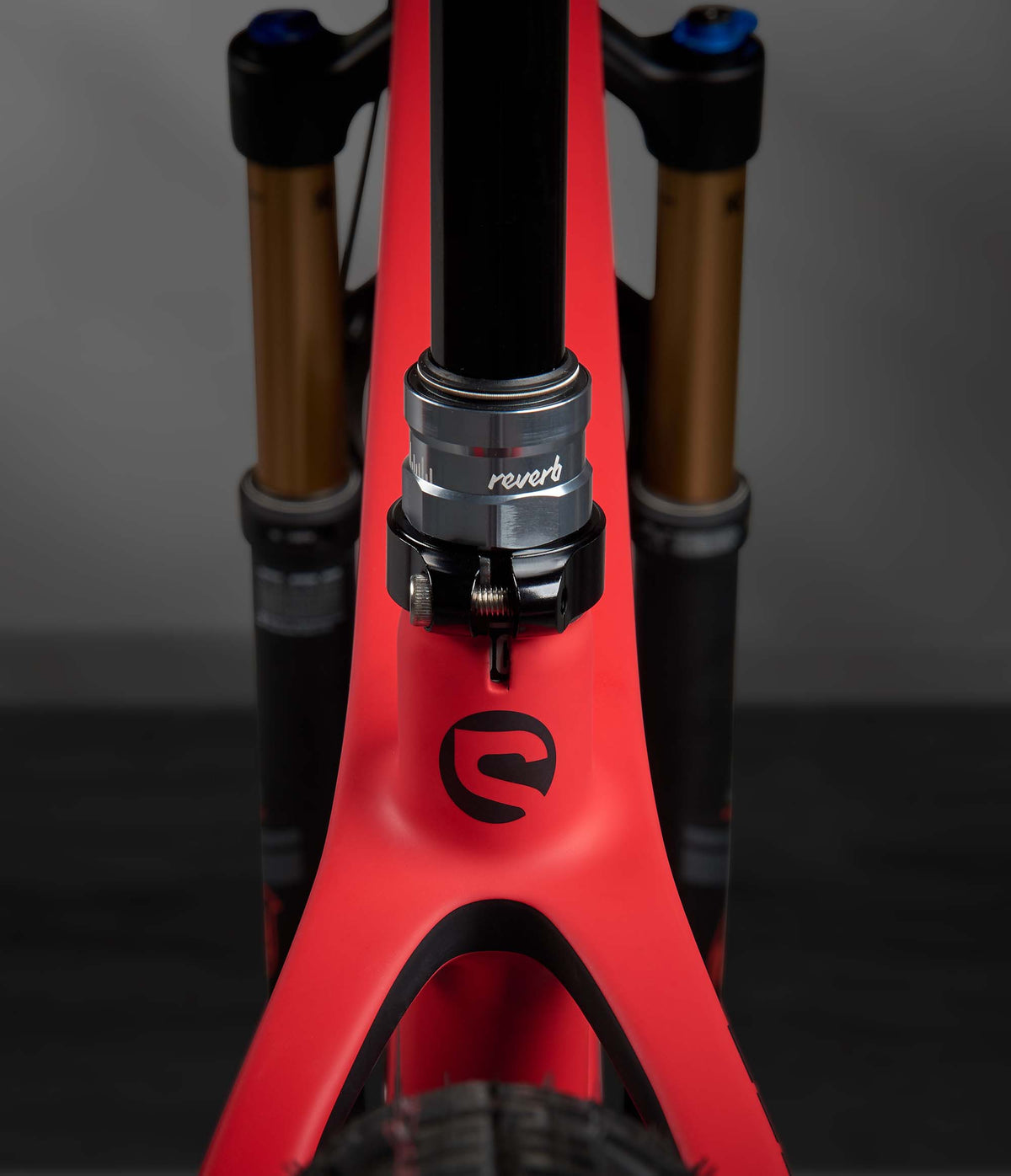

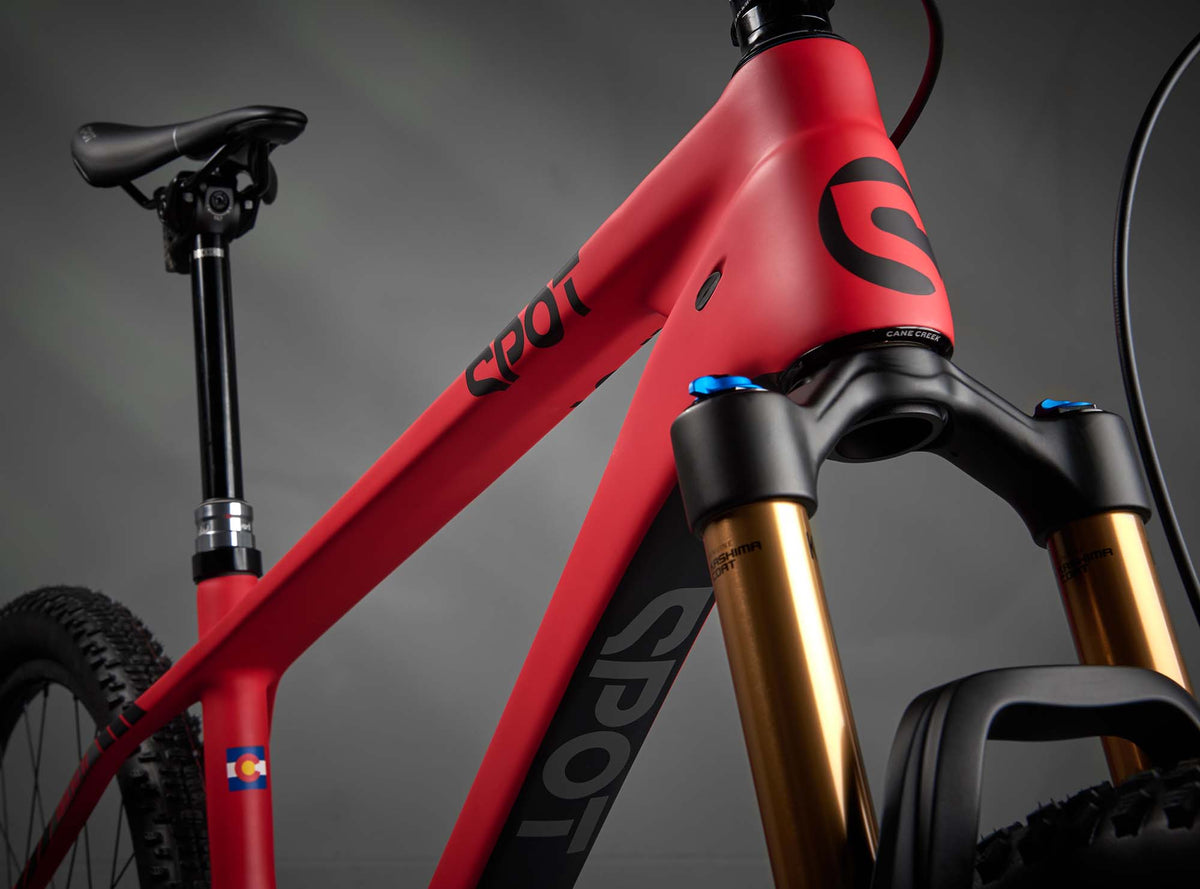

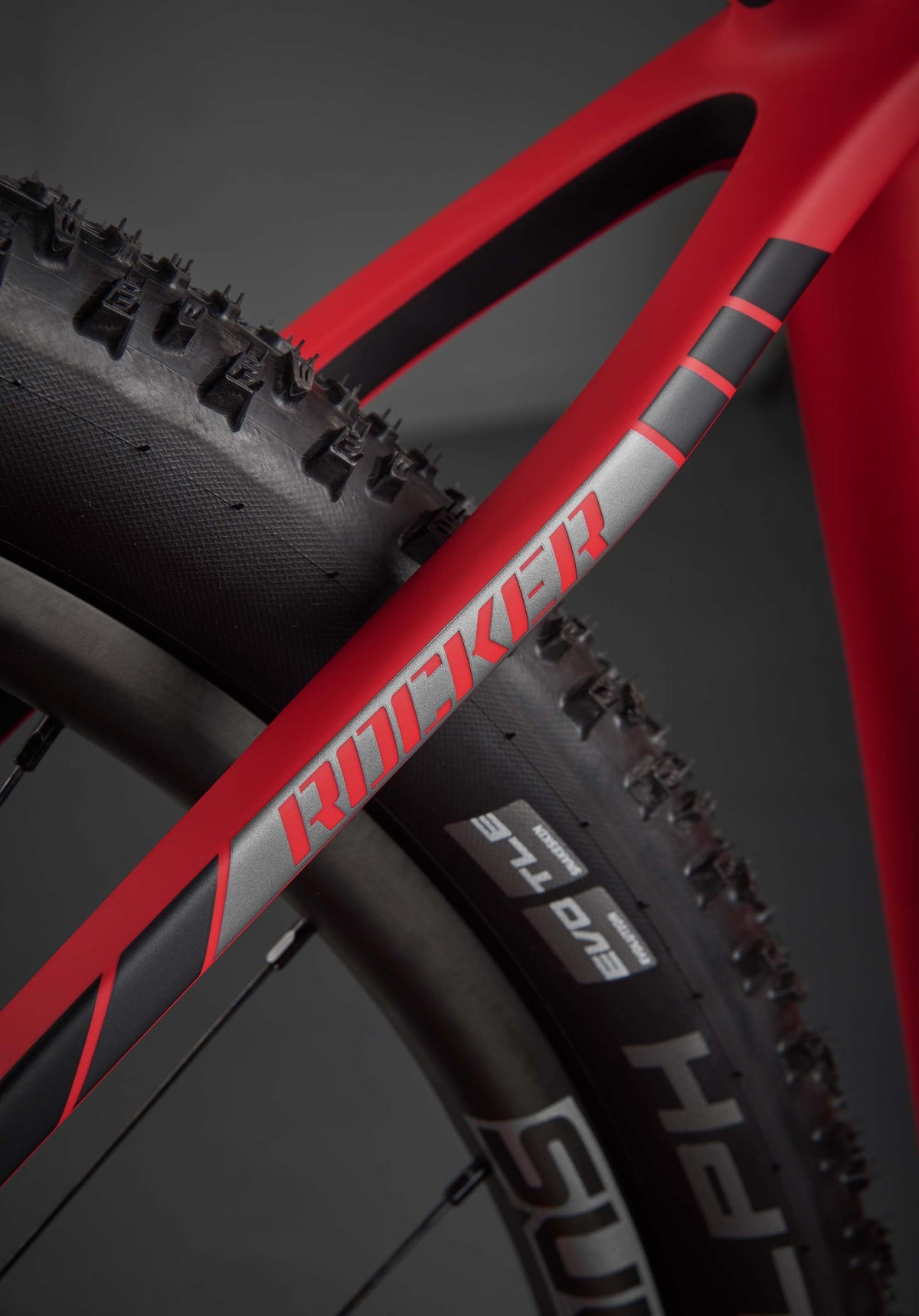

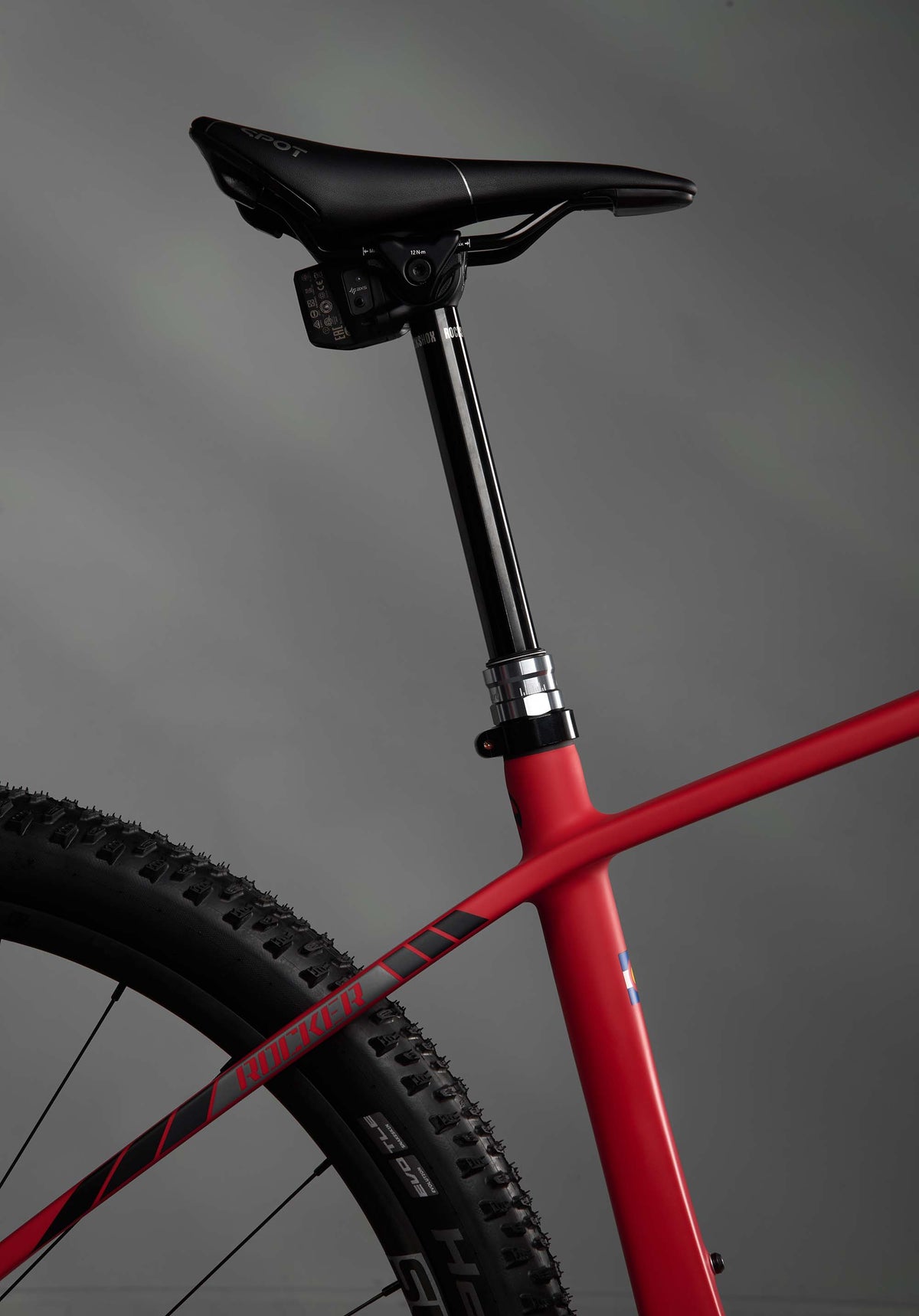

Matte Hot Tomato
View Kit Details

$2,399 to $6,699 $2,399

Rocker Geared - 2020

$2,399 $2,399

.

Take it for a Spin

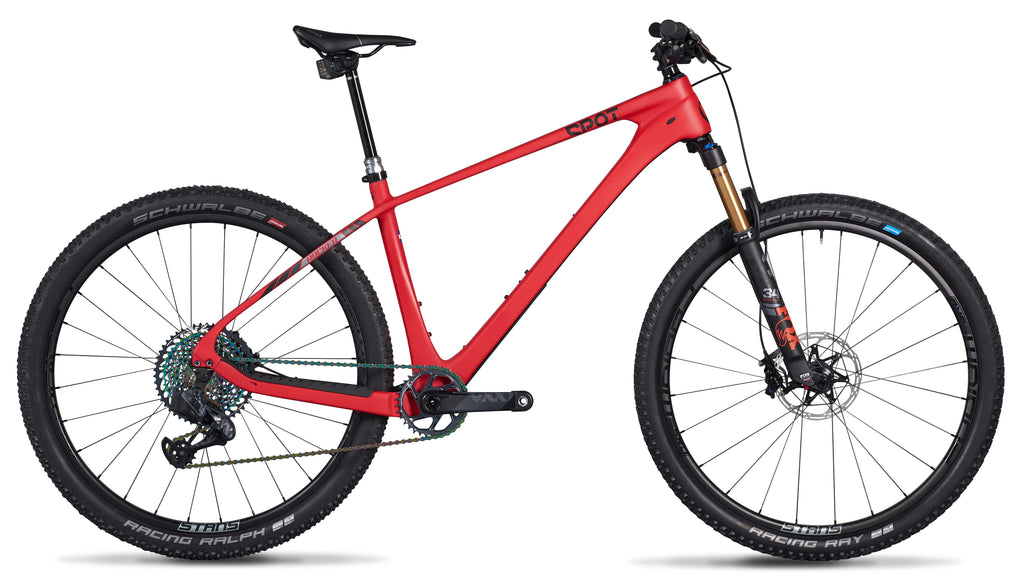

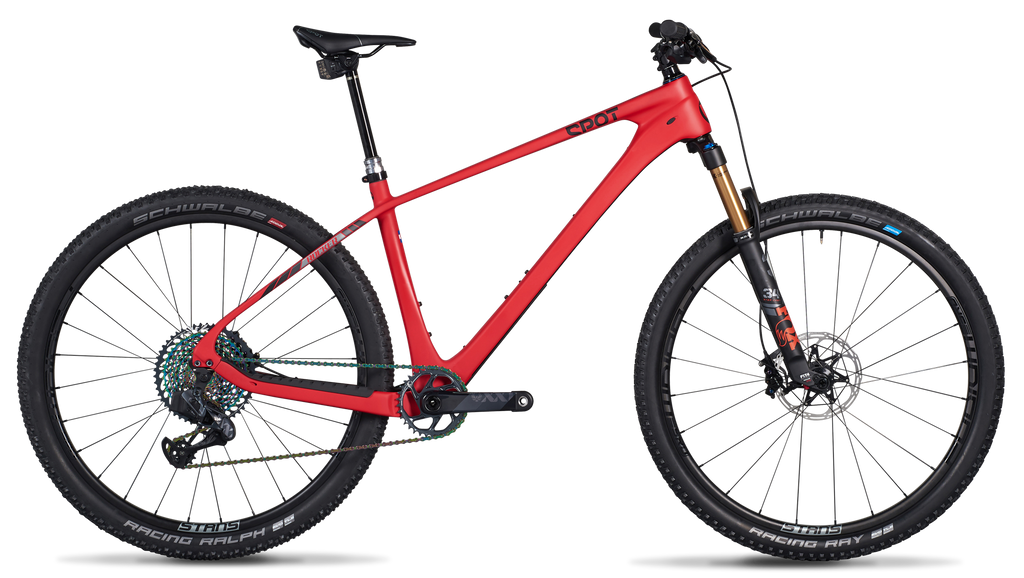

Matte Hot Tomato

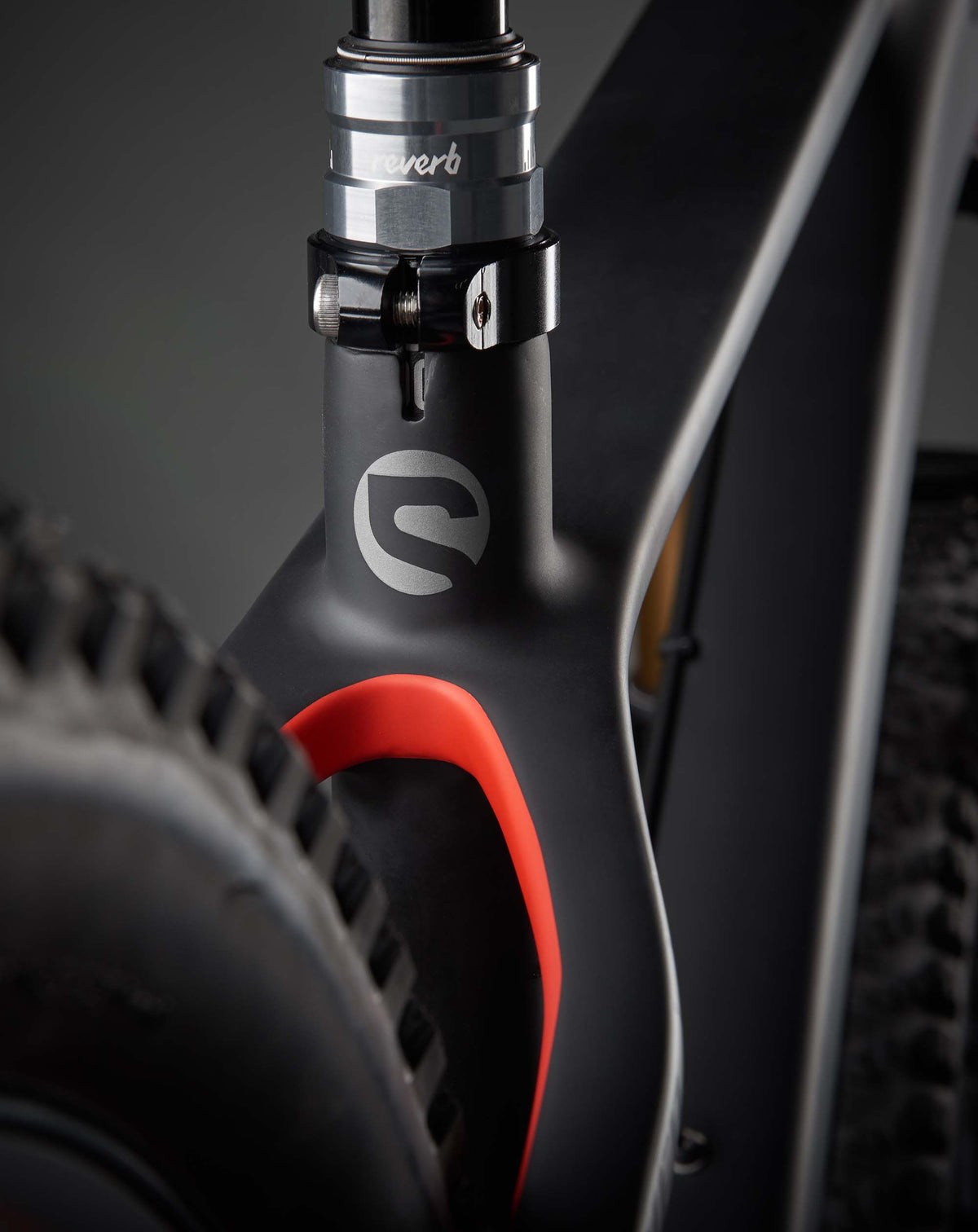

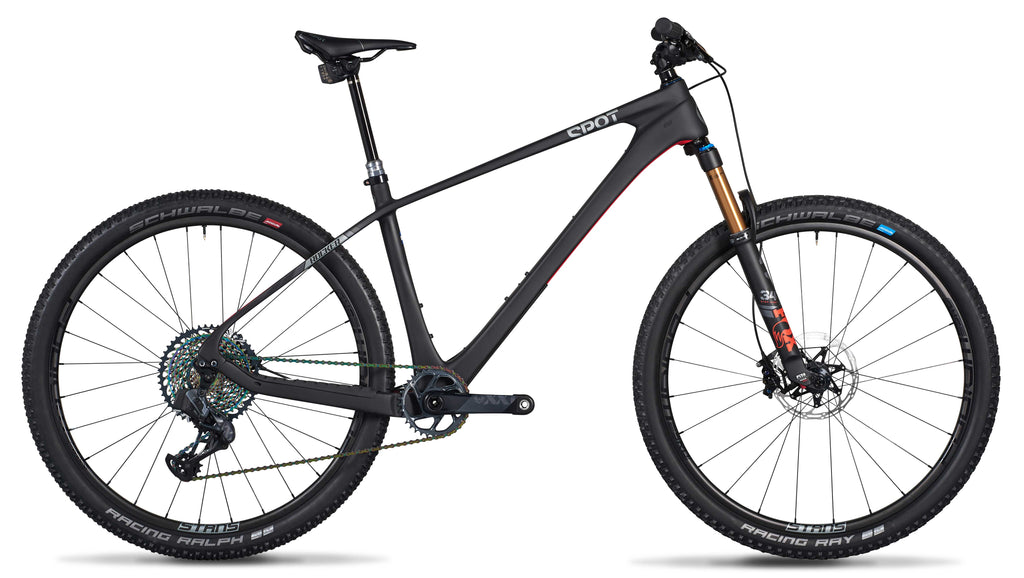

Matte Black

PICK YOUR BUILD LEVEL

View Component Comparison Table

Drive Train

Crankset

SRAM Stylo Eagle, B148, DUB, 170mm, 32t

Cassette

SRAM XG1275, 12-speed, 10-52t

Rear Derailleur

SRAM GX Eagle, 12-speed

Rear Shifter Lever

SRAM GX Eagle Lunar 12-speed, Trigger

Chain

SRAM GX Eagle

Fork

Fork

RockShox SID Select, 35, 120mm travel, Charger RL, 44mm Rake, Boost 15x110

Wheel Set

29
27.5

Front Wheel

29: Stan's No Tubes Crest S2 29, Tubeless, 6-Bolt, Boost 15x110

Front Wheel

27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, 6-Bolt, Boost 15x110

Rear Wheel

29: Stan's No Tubes Crest S2 29, Tubeless, XD, 6-Bolt, Boost 12x148

Rear Wheel

27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, XD, 6-Bolt, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Level TL, 180mm Centerline Rotor, 6-Bolt

Rear Brake

SRAM Level TL, 160mm Centerline Rotor, 6-Bolt

Stem

Race Face Aeffect, 35 x 60mm

Handlebar

Race Face Aeffect, 35mm, XL 780mm, LG 760, MD 740mm, SM 740mm, 20mm rise, Alloy

Grips

Ergon GXR

Seat Post

BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6

Saddle

SDG Bel-Air V3

Drive Train

Crankset

SRAM X1 Carbon Eagle B148, DUB 170mm, 32t

Cassette

SRAM XG1275, 12-speed, 10-52t

Rear Derailleur

SRAM XO1 Eagle BLK, 12-speed

Rear Shifter Lever

SRAM GX Eagle Lunar BLK, 12-speed, Trigger

Chain

SRAM GX Eagle, BLK

Fork

Fork

RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110

Wheel Set

29
27.5

Front Wheel

29: Stan's No Tubes Crest MK4 29, Tubeless, 6-Bolt, Boost 15x110

Front Wheel

27.5+: Stan's No Tubes Flow MK4 27.5+, Tubeless, 6-Bolt, Boost 15x110

Rear Wheel

29: Stan's No Tubes Crest MK4 29, E-Sync, Tubeless, XD, 6-Bolt, Boost 12x148

Rear Wheel

27.5+: Stan's No Tubes Flow MK4 27.5+, E-Sync, Tubeless, XD, 6-Bolt, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Level TLM, 180mm Centerline rotor, 6-Bolt

Rear Brake

SRAM Level TLM, 160mm Centerline rotor, 6-Bolt

Stem

Race Face Turbine R, 60mm

Handlebar

OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm

Grips

Ergon GXR

Seat Post

BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6

Saddle

SDG Bel-Air V3

Drive Train

Crankset

Shimano M9120 XTR, 170mm, 32t

Cassette

Shimano XTR 9100, 12-speed, 10-51t

Rear Derailleur

Shimano XTR 9100, 12-speed

Rear Shifter Lever

Shimano XTR 9100, 12-speed, Rapidfire Plus

Chain

Shimano XTR 9100

Fork

Fork

RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110

Wheel Set

29
27.5

Front Wheel

Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110

Front Wheel

27.5+: Industry Nine EN355 27.5, 32h, Tubeless, 6-Bolt, Boost 15x110

Rear Wheel

Industry Nine UL300 29, 24h, Tubeless, Microspline, 6-Bolt, Boost 12x148

Rear Wheel

27.5+: Industry Nine EN355 27.5, 32h, Tubeless, Microspline, 6-Bolt, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

Shimano M9100 XTR, 180mm rotor, 6-Bolt

Rear Brake

Shimano M9100 XTR, 160mm rotor, 6-Bolt

Stem

Race Face Turbine R, 60mm

Handlebar

OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm

Grips

Ergon GXR

Seat Post

BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6

Saddle

SDG Bel-Air V3

Drive Train

Crankset

SRAM XX1 Eagle, B148, DUB, 170mm, 32t

Cassette

SRAM XG1299, 12-speed, 10-52t, Rainbow

Rear Derailleur

SRAM XX1 Eagle AXS Wireless, 12-speed

Rear Shifter Lever

SRAM XX1 Eagle AXS Wireless 2 Bottom MMX, 12-speed

Chain

SRAM XX1 Eagle, Rainbow

Fork

Fork

RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110

Wheel Set

29
27.5

Front Wheel

Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110

Front Wheel

27.5+: Industry Nine EN355 27.5, 32h, Tubeless, 6-Bolt, Boost 15x110

Rear Wheel

Industry Nine UL300 29, 24h, Tubeless, XD, 6-Bolt, Boost 12x148

Rear Wheel

27.5+: Industry Nine EN355 27.5, 32h, Tubeless, XD, 6-Bolt, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline X rotor, 6-bolt

Rear Brake

SRAM Level Ultimate Stealth, 2-piston, 160mm Centerline X rotor, 6-Bolt

Stem

Race Face Turbine R, 60mm

Handlebar

OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm

Grips

Ergon GXR

Seat Post

Sram AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6

Saddle

SDG Bel-Air V3

4-Star Build Level 5-Star Build Level 6-Star XTR Build Level 6-Star AXS Build Level
Weight (lbs.) 29: S: 24.0, M: 24.1, L: 24.2, XL: 24.4, 27.5+: S: 25.0, M: 25.1, L: 25.2, XL: 25.4 29: S: 22.6, M: 22.7, L: 22.9, XL: 23.0, 27.5+: S: 23.9, M: 24.0, L: 24.2, XL: 24.3 29: S: 21.3, M: 21.5, L: 21.7, XL: 21.8, 27.5+: S: 22.4, M: 22.6, L: 22.7, XL: 22.9 29: S: 21.6, M: 21.8, L: 22.1, XL: 22.2, 27.5+: S: 22.7, M: 22.9, L: 23.1, XL: 23.3
Fork RockShox SID Select, 35mm stanchions, 120mm travel, Charger RL, 44mm Rake, Boost 15x110 RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110 RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110 RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110
Headset Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Crankset SRAM Stylo Eagle, B148, DUB, 170mm, 32t SRAM X1 Carbon Eagle B148, DUB 170mm, 32t Shimano M9120 XTR, 170mm, 32t SRAM XX1 Eagle, B148, DUB, 170mm, 32t
Cassette SRAM XG1275, 12-speed, 10-52t SRAM XG1275, 12-speed, 10-52t, BLK Shimano M9100 XTR, 12-speed, 10-51t SRAM XG1299, 12-speed, 10-52t, Rainbow
Rear Derailleur SRAM GX Eagle, 12-speed SRAM XO1 Eagle BLK, 12-speed Shimano M9100 XTR, 12-speed SRAM XX1 AXS Eagle, Wireless, 12-speed
Rear Shifter Lever SRAM GX Eagle Lunar 12-speed SRAM GX Eagle Lunar 12-speed Shimano M9100 XTR 12-speed SRAM XX1 AXS Eagle, Wireless, 12-speed
Bottom Bracket SRAM DUB BSA MTB73 SRAM DUB BSA MTB73 Shimano SM-BB93 BSA 73mm SRAM DUB BSA MTB73
Front Brake SRAM Level TL, 180mm Centerline Rotor, 6-Bolt SRAM Level TLM, 180mm Centerline rotor, 6-Bolt Shimano M9100 XTR, 180mm rotor, 6-Bolt SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline X rotor, 6-Bolt
Rear Brake SRAM Level TL, 160mm Centerline Rotor, 6-Bolt SRAM Level TLM, 160mm Centerline rotor, 6-Bolt Shimano M9100 XTR, 160mm rotor, 6-Bolt SRAM Level Ultimate Stealth, 2-piston, 160mm Centerline X rotor, 6-Bolt
Chain SRAM GX Eagle SRAM GX Eagle Shimano 9100 XTR SRAM XX1 Eagle, Rainbow
Front Wheel 29: Stan's No Tubes Crest S2 29, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, 6-Bolt, Boost 15x110 29: Stan's No Tubes Crest MK4 29, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Stan's No Tubes Flow MK4 27.5+, Tubeless, 6-Bolt, Boost 15x110 29: Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Industry Nine EN355 27.5, Tubeless, 6-Bolt, Boost 15x110 29: Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110, 27.5+: Industry Nine EN355 27.5, Tubeless, 6-Bolt, Boost 15x110
Rear Wheel 29: Stan's No Tubes Crest S2 29, Tubeless, XD, 6-Bolt Boost 12x148, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, XD, 6-Bolt Boost 12x148 29: Stan's No Tubes Crest MK4 29, E-Sync, Tubeless, XD, 6-Bolt, Boost 12x148, 27.5+: Stan's No Tubes Flow MK4 27.5+, E-Sync, Tubeless, XD, 6-Bolt, Boost 12x148 29: Industry Nine UL300 29, 24h, Tubeless, Microspline, 6-Bolt, Boost 12x148, 27.5+: Industry Nine EN355 27.5, Microspline, Tubeless, 6-Bolt, Boost 12x148 29: Industry Nine UL300 29, 24h, Tubeless, XD, 6-Bolt, Boost 12x148, 27.5+: Industry Nine EN355 27.5, XD, Tubeless, 6-Bolt, Boost 12x148
Front Tire 29: Schwalbe Wicked Will 29x2.4, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Wicked Will 29x2.4, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Wicked Will 29x2.4, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Wicked Will 29x2.4, 27.5+: Maxxis Rekon Plus 27.5x2.8
Rear Tire 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8
Stem Race Face Aeffect, 35mm x 60mm Race Face Turbine R, 35mm x 60mm Race Face Turbine R, 35mm x 60mm Race Face Turbine R, 35mm x 60mm
Handlebar Race Face Aeffect, 35mm, XL 780mm, LG 760mm, MD/SM 740mm, 20mm rise, Alloy OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon
Grips Ergon GXR, Black Ergon GXR, Black Ergon GXR, Black Ergon GXR, Black
Seat Post BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 Sram AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6
Saddle SDG Bel-Air V3 SDG Bel-Air V3 SDG Bel-Air V3 SDG Bel-Air V3

See this diagram for an explanation of Rocker geometry terms.

Frame Size Small Medium Large X-Large
Reach 410mm (16.1") 440mm (17.3") 470mm (18.5") 500mm (19.7")
Stack 607mm (23.9") 621mm (24.4") 635mm (25.0") 644mm (25.4")
Eff. Top Tube Length 567mm (22.3") 601mm (23.7") 634mm (25.0") 667mm (26.3")
Seat Tube Length 380mm (15.0") 410mm (16.1") 460mm (18.1") 510mm (20.1")
Head Tube Length 90mm (3.5") 105mm (4.1") 120mm (4.7") 130mm (5.1")
Head Tube Angle 67.0° 67.0° 67.0° 67.0°
Seat Tube Angle 75.5° 75.5° 75.5° 75.5°
Bottom Bracket Drop 50mm (2.0") 50mm (2.0") 50mm (2.0") 50mm (2.0")
Est. Bottom Bracket Height 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4")
Rear Center Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5")
Front Center 696mm (27.4") 732mm (28.8") 768mm (30.2") 802mm (31.6")
Wheel Base 1141mm (45.4") 1177mm (46.7") 1213mm (47.9") 1247mm (49.1")
Standover 741mm (29.2") 741mm (29.2") 782mm (30.8") 782mm (30.8")

Rocker Geared - 2020 Geometry

See this diagram for an explanation of Rocker geometry terms.

Frame Size Small Medium Large X-Large
Reach 410mm (16.1") 440mm (17.3") 470mm (18.5") 500mm (19.7")
Stack 607mm (23.9") 621mm (24.4") 635mm (25.0") 644mm (25.4")
Eff. Top Tube Length 567mm (22.3") 601mm (23.7") 634mm (25.0") 667mm (26.3")
Seat Tube Length 380mm (15.0") 410mm (16.1") 460mm (18.1") 510mm (20.1")
Head Tube Length 90mm (3.5") 105mm (4.1") 120mm (4.7") 130mm (5.1")
Head Tube Angle 67.0° 67.0° 67.0° 67.0°
Seat Tube Angle 75.5° 75.5° 75.5° 75.5°
Bottom Bracket Drop 50mm (2.0") 50mm (2.0") 50mm (2.0") 50mm (2.0")
Est. Bottom Bracket Height 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4")
Rear Center Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5")
Front Center 696mm (27.4") 732mm (28.8") 768mm (30.2") 802mm (31.6")
Wheel Base 1141mm (45.4") 1177mm (46.7") 1213mm (47.9") 1247mm (49.1")
Standover 741mm (29.2") 741mm (29.2") 782mm (30.8") 782mm (30.8")

A Rebellious Hardtail

FORCE-RESPONSE FRAME

Modern Geometry

Kobe Slider 3 Dropouts

Plus or 29

Groovy Guides

Lifetime Warranty
