Rocker Geared
Rated 5.0 out of 5
Based on 73 reviews

$2,299 to $7,399 $4,199

Payments available with . Learn more

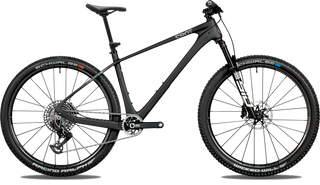

Matte Black // Main image // Featured

View the Geometry

Rocker Geared
Rated 5.0 out of 5
Based on 73 reviews

$2,299 to $7,399 $4,199

Geometry View Kit Details
Frame Size
Find Your Size
Select Height to See Suggestion
Specs View Kit Details
Color Specs

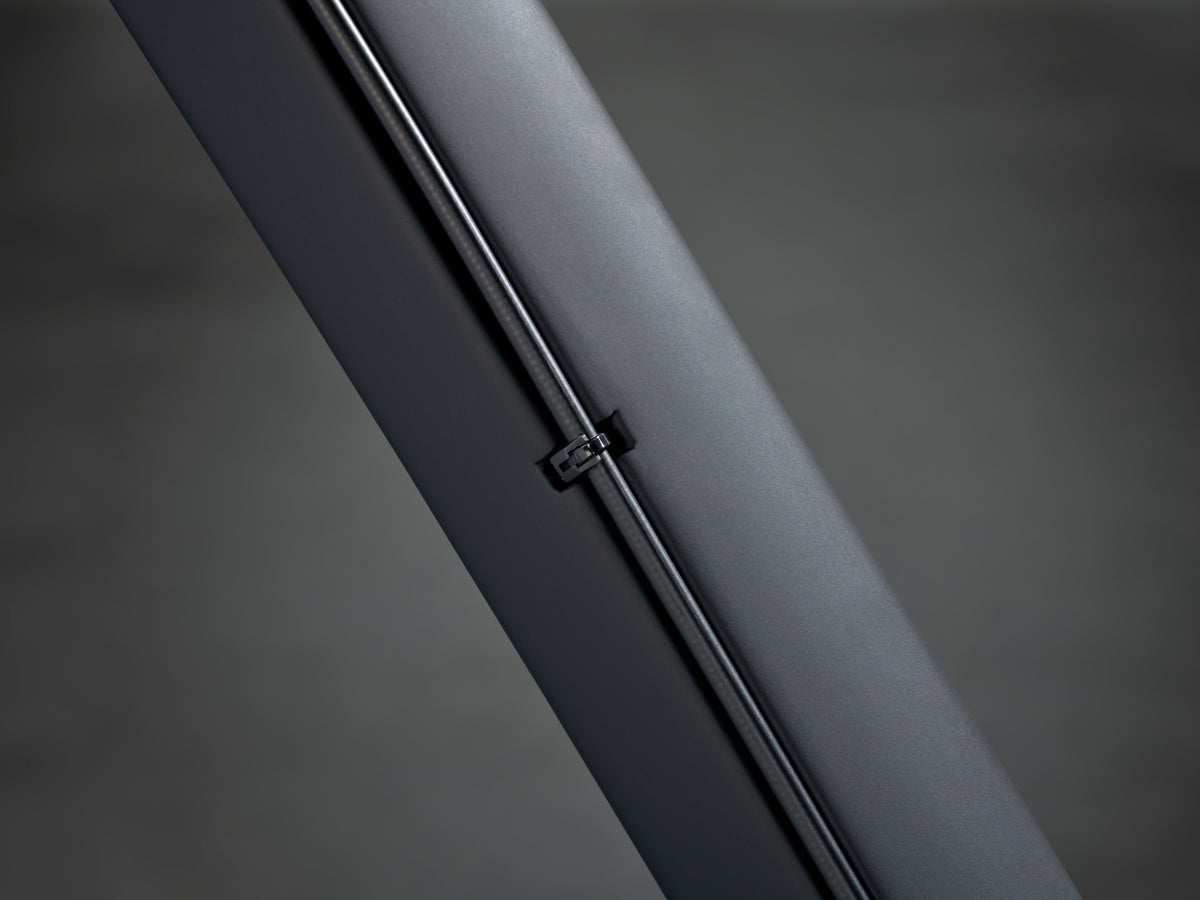

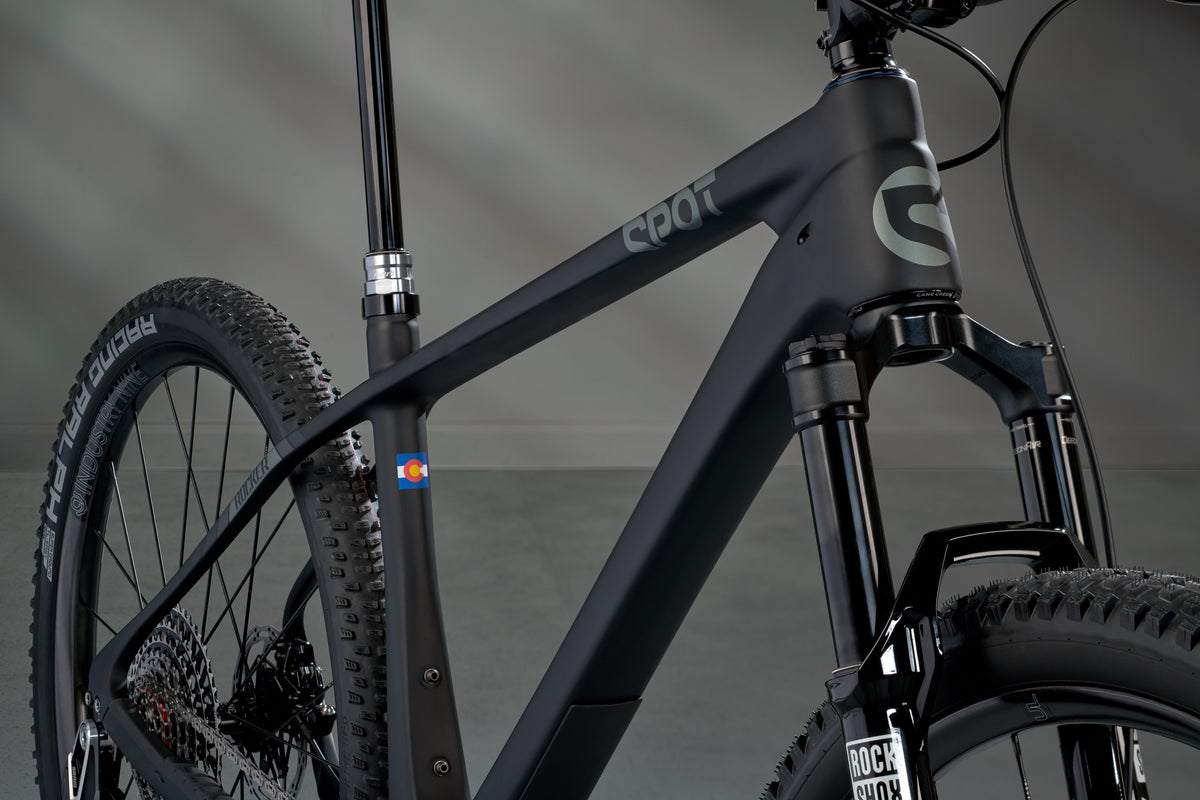

Matte Black
Matte Hot Tomato
View Kit Details

$2,299 to $7,399 $4,199

Rocker Geared

SALE $2,299 $4,199 $4,199

Take it for a Spin

Matte Hot Tomato

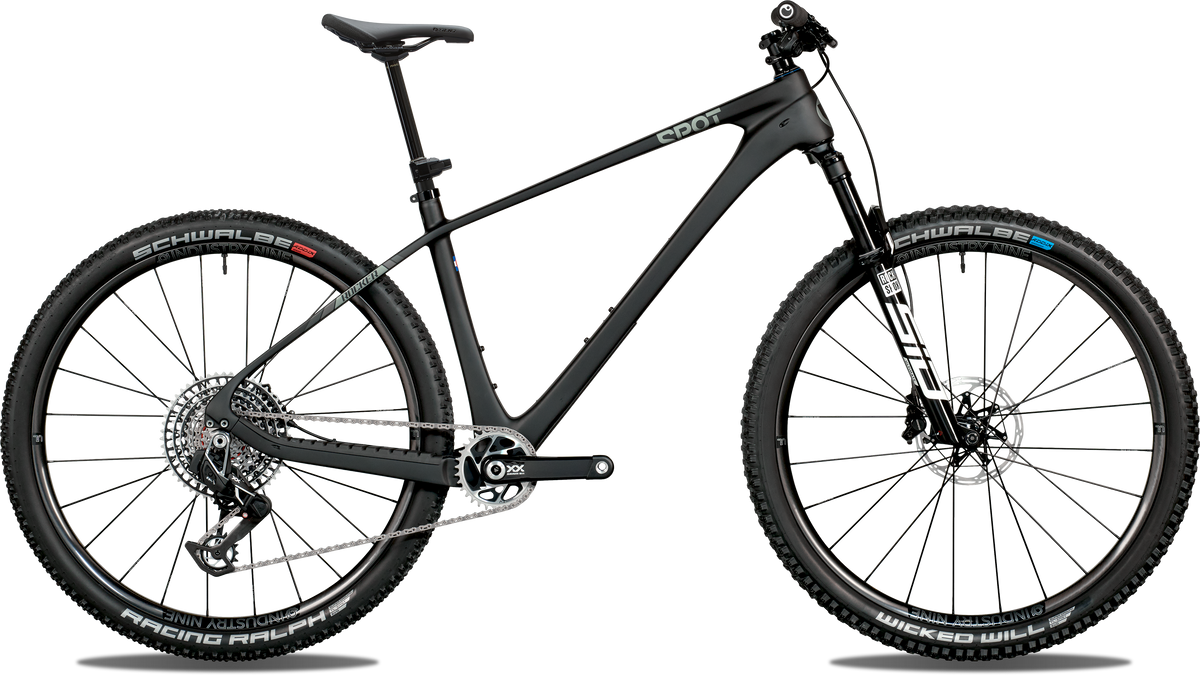

Matte Black

PICK YOUR BUILD LEVEL

4-Star Build Level 5-Star Build Level 6-Star XTR Build Level 6-Star AXS Build Level
Weight (lbs.) 29: S: 24.0, M: 24.1, L: 24.2, XL: 24.4, 27.5+: S: 25.0, M: 25.1, L: 25.2, XL: 25.4 29: S: 22.6, M: 22.7, L: 22.9, XL: 23.0, 27.5+: S: 23.9, M: 24.0, L: 24.2, XL: 24.3 29: S: 21.3, M: 21.5, L: 21.7, XL: 21.8, 27.5+: S: 22.4, M: 22.6, L: 22.7, XL: 22.9 29: S: 21.6, M: 21.8, L: 22.1, XL: 22.2, 27.5+: S: 22.7, M: 22.9, L: 23.1, XL: 23.3
Fork 29: Fox Performance 34 Float Step-Cast 29, 120mm travel, 3Pos-Adj, Grip, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Select, 35, 120mm travel, Charger RL, 44mm Rake, Boost 15QRx110 29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110 29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110 29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110
Headset Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

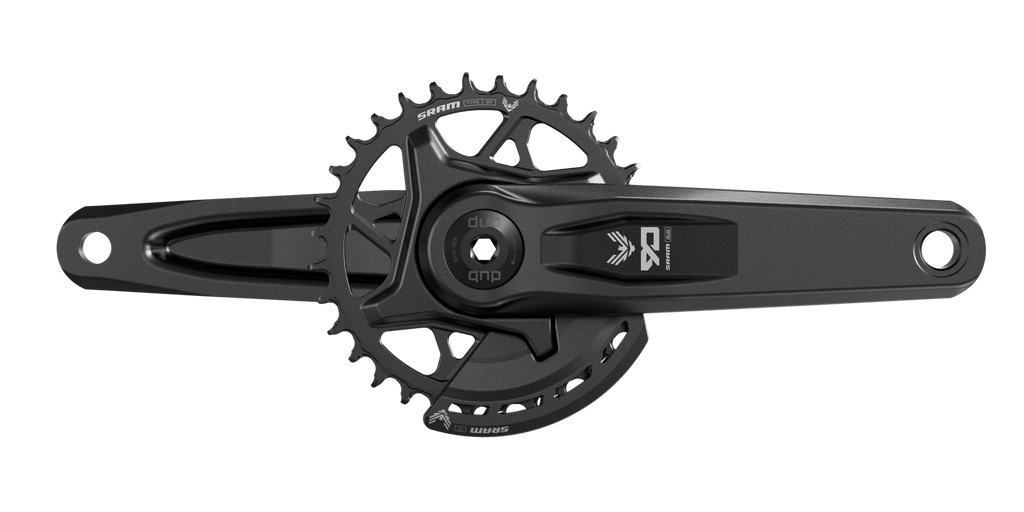

Crankset SRAM Stylo Eagle, B148, DUB, 170mm, 32t SRAM X1 Carbon Eagle B148, DUB 170mm, 32t Shimano M9120 XTR, 170mm, 32t SRAM XX1 Eagle, B148, DUB, 170mm, 32t

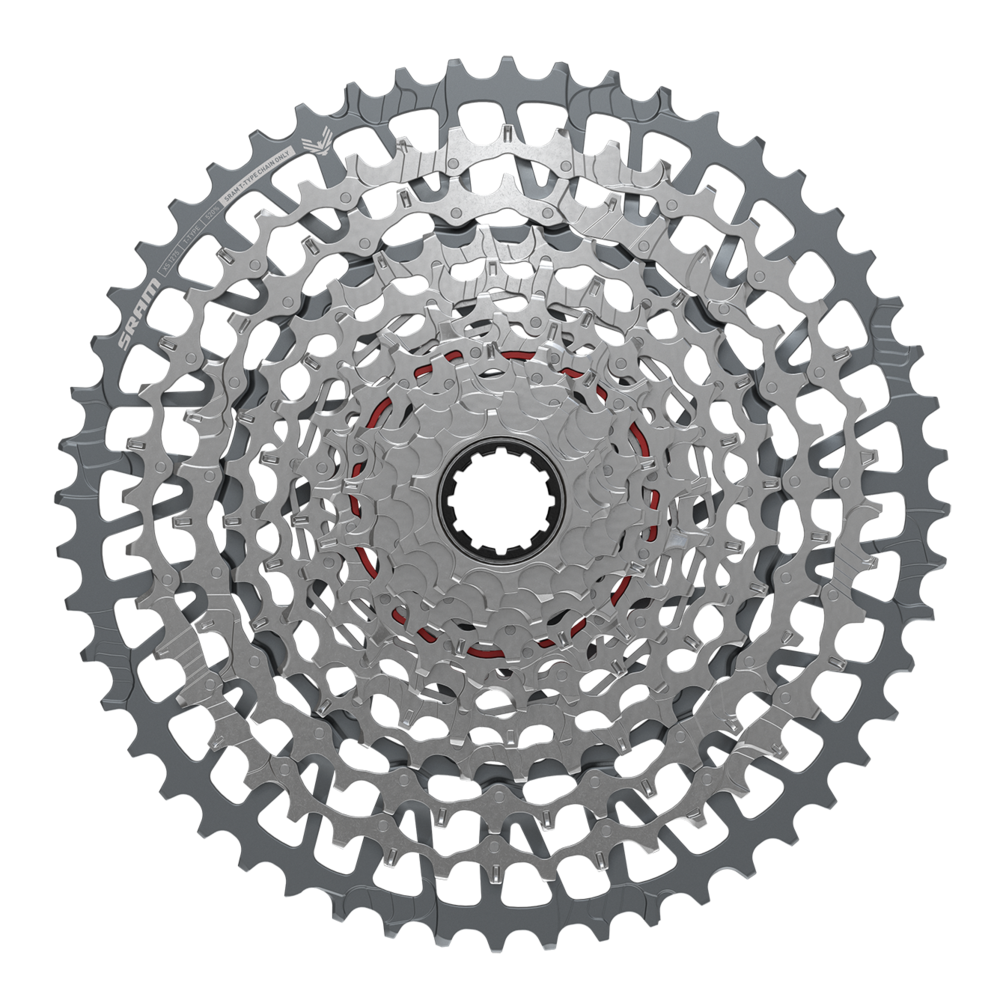

Cassette SRAM XG1275, 12-speed, 10-50t SRAM XG1275, 12-speed, 10-50t, BLK Shimano M9100 XTR, 12-speed, 10-51t SRAM XG1299, 12-speed, 10-50t, Rainbow

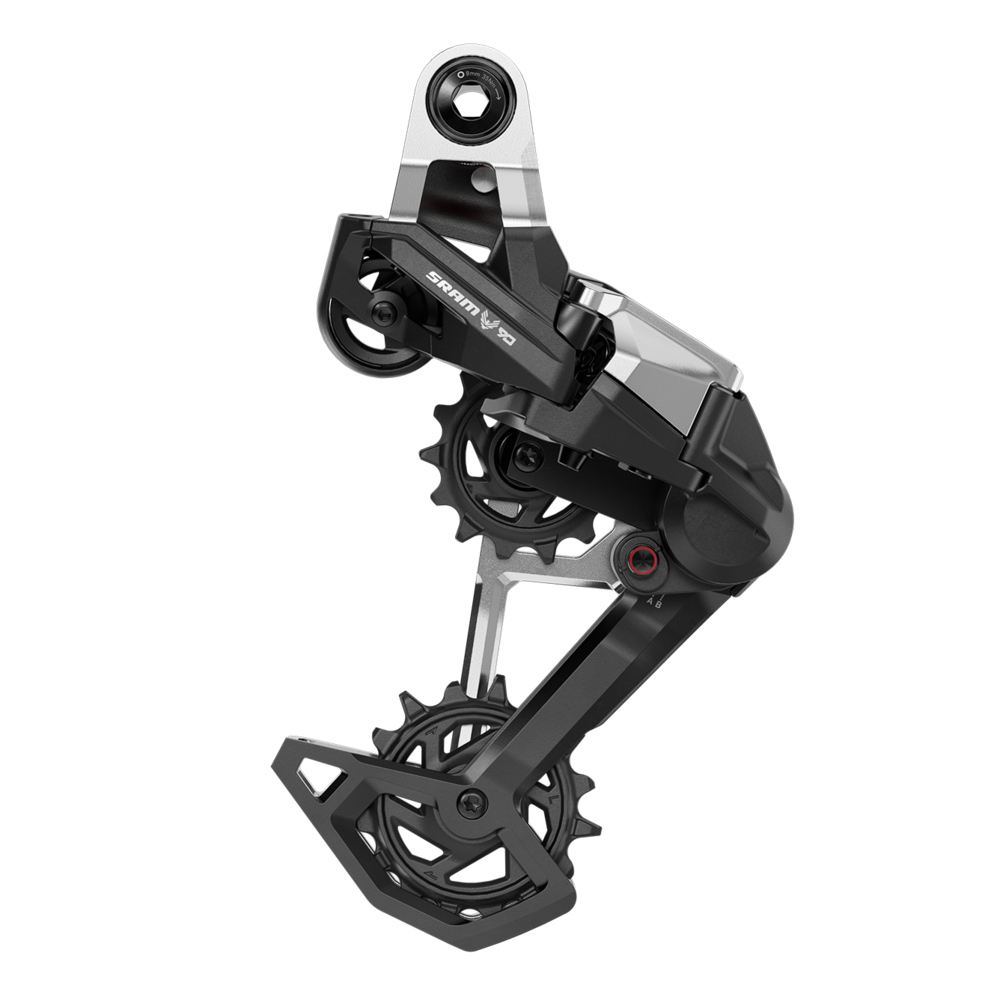

Rear Derailleur SRAM GX Eagle, 12-speed SRAM XO1 Eagle BLK, 12-speed Shimano M9100 XTR, 12-speed SRAM XX1 AXS Eagle, Wireless, 12-speed

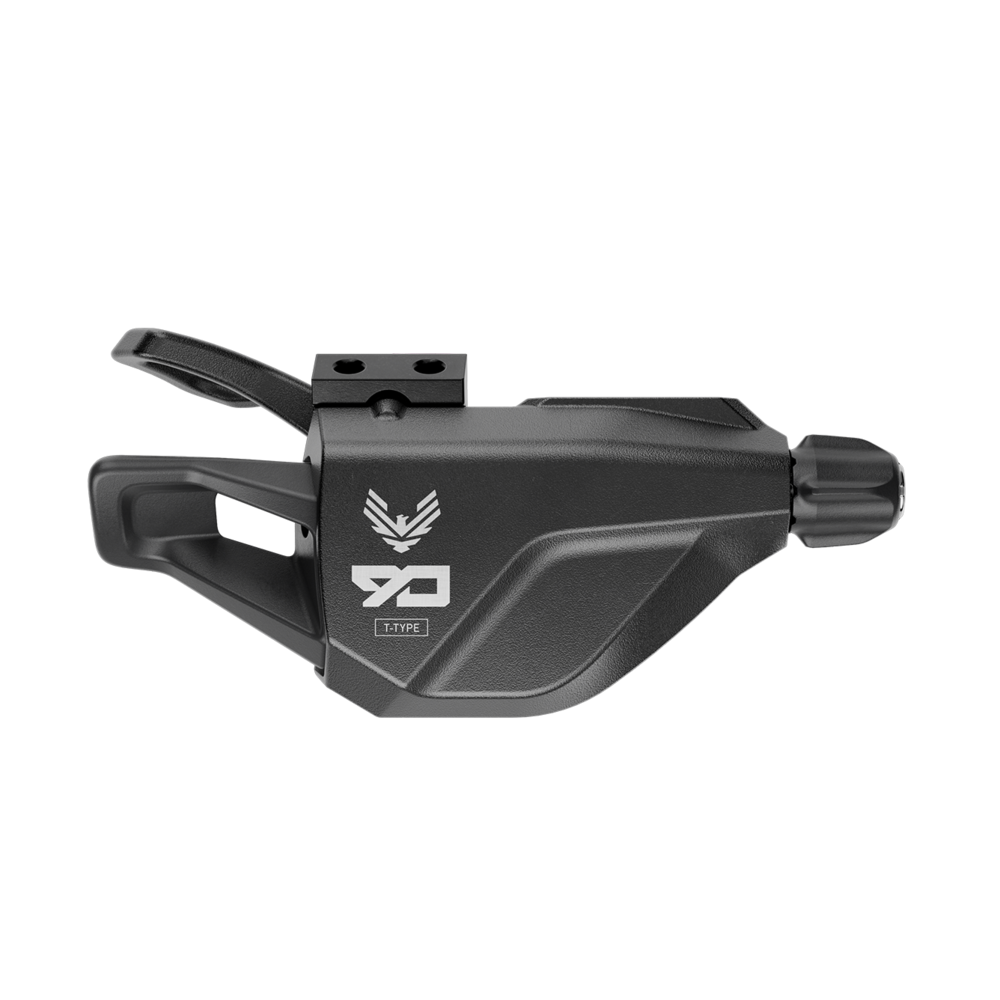

Rear Shifter Lever SRAM GX Eagle Lunar 12-speed SRAM GX Eagle Lunar 12-speed Shimano M9100 XTR 12-speed SRAM XX1 AXS Eagle, Wireless, 12-speed
Bottom Bracket SRAM DUB BSA MTB73 SRAM DUB BSA MTB73 Shimano SM-BB93 BSA 73mm SRAM DUB BSA MTB73
Front Brake SRAM Level TL, 180mm Centerline Rotor, CenterLock SRAM Level TLM, 180mm Centerline rotor, CenterLock Shimano M9100 XTR, 180mm rotor, CenterLock SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline rotor, CenterLock
Rear Brake SRAM Level TL, 160mm Centerline Rotor, CenterLock SRAM Level TLM, 160mm Centerline rotor, CenterLock Shimano M9100 XTR, 160mm rotor, CenterLock SRAM Level Ultimate Stealth, 2-piston, 160mm Centerline rotor, CenterLock
Chain SRAM GX Eagle SRAM GX Eagle Shimano 9100 XTR SRAM XX1 Eagle, Rainbow
Front Wheel 29: Stan's No Tubes Crest S2 29, Tubeless, CenterLock, Boost 15x110, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, CenterLock, Boost 15x110 29: Stan's No Tubes Crest MK4 29, Tubeless, CenterLock, Boost 15x110, 27.5+: Stan's No Tubes Flow MK4 27.5+, Tubeless, CenterLock, Boost 15x110 29: Industry Nine Trail 280 We Are One Composites 29, 24h, I9 Hydra, Tubeless, CenterLock, Boost 15x110, 27.5+: Enve M635, I9 Hydra, 27.5+, Tubeless, CenterLock, Boost 15x110 29: Industry Nine Trail 280 We Are One Composites 29, Tubeless, CenterLock, Boost 15x110, 27.5+: Enve M635, I9 Hydra, 27.5+, Tubeless, 6-bolt, Boost 15x110
Rear Wheel 29: Stan's No Tubes Crest S2 29, Tubeless, XD, CenterLock Boost 12x148, 27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, XD, CenterLock Boost 12x148 29: Stan's No Tubes Crest MK4 29, E-Sync, Tubeless, XD, CenterLock, Boost 12x148, 27.5+: Stan's No Tubes Flow MK4 27.5+, E-Sync, Tubeless, XD, CenterLock, Boost 12x148 29: Industry Nine Trail 280 We Are One Composites 29, Tubeless, Microspline, CenterLock, Boost 12x148, 27.5+: Enve M635, I9 Hydra, Tubeless, Microspline, CenterLock, Boost 12x148 29: Industry Nine Trail 280 We Are One Composites 29, Tubeless, XD, CenterLock, Boost 12x148, 27.5+: Enve M635, I9 Hydra, Tubeless, XD, 6-bolt, Boost 12x148
Front Tire 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ray 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8
Rear Tire 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8 29: Schwalbe Racing Ralph 29x2.25, 27.5+: Maxxis Rekon Plus 27.5x2.8
Stem Race Face Aeffect, 35mm x 60mm Race Face Turbine R, 31.8mm x 60mm Race Face Turbine R, 31.8mm x 60mm Race Face Turbine R, 31.8mm x 60mm
Handlebar Race Face Aeffect, 35mm, XL 780mm, LG 760mm, MD/SM 740mm, 20mm rise, Alloy OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon
Grips Spot lock-on Spot lock-on Spot lock-on Spot lock-on
Seat Post BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 Sram AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6
Saddle Spot MTB Spot MTB Spot MTB Spot MTB

See this diagram for an explanation of Rocker geometry terms.

Frame Size Small Medium Large X-Large
Reach 410mm (16.1") 440mm (17.3") 470mm (18.5") 500mm (19.7")
Stack 607mm (23.9") 621mm (24.4") 635mm (25.0") 644mm (25.4")
Eff. Top Tube Length 567mm (22.3") 601mm (23.7") 634mm (25.0") 667mm (26.3")
Seat Tube Length 380mm (15.0") 410mm (16.1") 460mm (18.1") 510mm (20.1")
Head Tube Length 90mm (3.5") 105mm (4.1") 120mm (4.7") 130mm (5.1")
Head Tube Angle 67.0° 67.0° 67.0° 67.0°
Seat Tube Angle 75.5° 75.5° 75.5° 75.5°
Bottom Bracket Drop 50mm (2.0") 50mm (2.0") 50mm (2.0") 50mm (2.0")
Est. Bottom Bracket Height 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4")
Rear Center Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5")
Front Center 696mm (27.4") 732mm (28.8") 768mm (30.2") 802mm (31.6")
Wheel Base 1141mm (45.4") 1177mm (46.7") 1213mm (47.9") 1247mm (49.1")
Standover 741mm (29.2") 741mm (29.2") 782mm (30.8") 782mm (30.8")

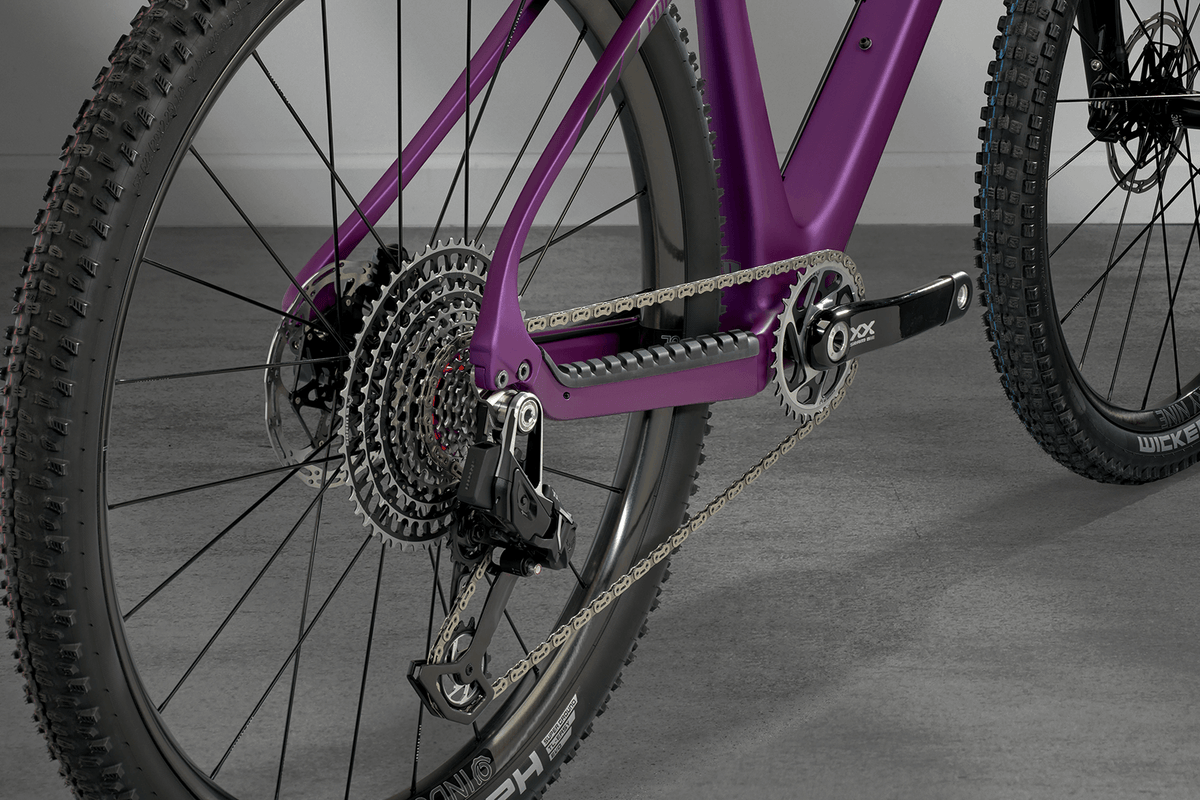

Drive Train

Crankset

SRAM Stylo Eagle, B148, DUB, 170mm, 32t

Cassette

SRAM XG1275, 12-speed, 10-50t

Rear Derailleur

SRAM GX Eagle, 12-speed

Rear Shifter Lever

SRAM GX Eagle Lunar 12-speed, Trigger

Chain

SRAM GX Eagle

Fork

Fork

29: Fox Performance 34 Float Step-Cast 29, 120mm travel, 3Pos-Adj, Grip, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Select, 35, 120mm travel, Charger RL, 44mm Rake, Boost 15QRx110

Wheel Set

29
27.5

Front Wheel

29: Stan's No Tubes Crest S2 29, Tubeless, 6-Bolt, Boost 15x110

Front Wheel

27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, 6-Bolt, Boost 15x110

Rear Wheel

29: Stan's No Tubes Crest S2 29, Tubeless, XD, 6-Bolt, Boost 12x148

Rear Wheel

27.5+: Stan's No Tubes Flow S2 27.5+, Tubeless, XD, 6-Bolt, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Level TL, 180mm Centerline Rotor, CenterLock

Rear Brake

SRAM Level TL, 160mm Centerline Rotor, CenterLock

Stem

Race Face Aeffect, 35 x 60mm

Handlebar

Race Face Aeffect, 35mm, XL 780mm, LG 760, MD 740mm, SM 740mm, 20mm rise, Alloy

Grips

Spot lock-on

Seat Post

BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6

Saddle

Spot MTB

Drive Train

Crankset

SRAM X1 Carbon Eagle B148, DUB 170mm, 32t

Cassette

SRAM XG1275, 12-speed, 10-50t

Rear Derailleur

SRAM XO1 Eagle BLK, 12-speed

Rear Shifter Lever

SRAM GX Eagle Lunar BLK, 12-speed, Trigger

Chain

SRAM GX Eagle, BLK

Fork

Fork

29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110

Wheel Set

29
27.5

Front Wheel

29: Stan's No Tubes Crest MK4 29, Tubeless, 6-Bolt, Boost 15x110

Front Wheel

27.5+: Stan's No Tubes Flow MK4 27.5+, Tubeless, 6-Bolt, Boost 15x110

Rear Wheel

29: Stan's No Tubes Crest MK4 29, E-Sync, Tubeless, XD, 6-Bolt, Boost 12x148

Rear Wheel

27.5+: Stan's No Tubes Flow MK4 27.5+, E-Sync, Tubeless, XD, 6-Bolt, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Level TLM, 180mm Centerline rotor, CenterLock

Rear Brake

SRAM Level TLM, 160mm Centerline rotor, CenterLock

Stem

Race Face Turbine R, 60mm

Handlebar

OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm

Grips

Spot lock-on

Seat Post

BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6

Saddle

Spot MTB

Drive Train

Crankset

Shimano M9120 XTR, 170mm, 32t

Cassette

Shimano XTR 9100, 12-speed, 10-51t

Rear Derailleur

Shimano XTR 9100, 12-speed

Rear Shifter Lever

Shimano XTR 9100, 12-speed, Rapidfire Plus

Chain

Shimano XTR 9100

Fork

Fork

29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110

Wheel Set

29
27.5

Front Wheel

Industry Nine Trail 280 We Are One Composites 29, 24h, Tubeless, CenterLock, Boost 15x110

Front Wheel

27.5+: Enve M635, I9 Hydra, 27.5+, Tubeless, CenterLock, Boost 15x110

Rear Wheel

Industry Nine Trail 280 We Are One Composites 29, 24h, Tubeless, Microspline, CenterLock, Boost 12x148

Rear Wheel

27.5+: Enve M635, I9 Hydra, Tubeless, Microspline, CenterLock, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

Shimano M9100 XTR, 180mm rotor, CenterLock

Rear Brake

Shimano M9100 XTR, 160mm rotor, CenterLock

Stem

Race Face Turbine R, 60mm

Handlebar

OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm

Grips

Spot lock-on

Seat Post

BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6

Saddle

Spot MTB

Drive Train

Crankset

SRAM XX1 Eagle, B148, DUB, 170mm, 32t

Cassette

SRAM XG1299, 12-speed, 10-50t, Rainbow

Rear Derailleur

SRAM XX1 Eagle AXS Wireless, 12-speed

Rear Shifter Lever

SRAM XX1 Eagle AXS Wireless 2 Bottom MMX, 12-speed

Chain

SRAM XX1 Eagle, Rainbow

Fork

Fork

29: Fox Factory Float 34 Step-Cast 29, 120mm travel, 3Pos-Adj, FIT4, 44mm Rake, Boost 15QRx110. 27.5+: RockShox SID Ultimate, 35, 120mm travel, Charger Race Day, 44mm Rake, Boost 15QRx110

Wheel Set

29
27.5

Front Wheel

Industry Nine Trail 280 We Are One Composites 29, 24h, Tubeless, CenterLock, Boost 15x110

Front Wheel

27.5+: Enve M635, I9 Hydra, 27.5+, Tubeless, CenterLock, Boost 15x110

Rear Wheel

Industry Nine Trail 280 We Are One Composites 29, 24h, Tubeless, XD, CenterLock, Boost 12x148

Rear Wheel

27.5+: Enve M635, I9 Hydra, Tubeless, XD, CenterLock, Boost 12x148

COMPONENTS

Headset

Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline rotor, 6-bolt

Rear Brake

SRAM Level Ultimate Stealth, 2-piston, 160mm Centerline rotor, CenterLock

Stem

Race Face Turbine R, 60mm

Handlebar

OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm

Grips

Spot lock-on

Seat Post

Sram AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6

Saddle

Spot MTB

Rocker Geared Geometry

See this diagram for an explanation of Rocker geometry terms.

Frame Size Small Medium Large X-Large
Reach 410mm (16.1") 440mm (17.3") 470mm (18.5") 500mm (19.7")
Stack 607mm (23.9") 621mm (24.4") 635mm (25.0") 644mm (25.4")
Eff. Top Tube Length 567mm (22.3") 601mm (23.7") 634mm (25.0") 667mm (26.3")
Seat Tube Length 380mm (15.0") 410mm (16.1") 460mm (18.1") 510mm (20.1")
Head Tube Length 90mm (3.5") 105mm (4.1") 120mm (4.7") 130mm (5.1")
Head Tube Angle 67.0° 67.0° 67.0° 67.0°
Seat Tube Angle 75.5° 75.5° 75.5° 75.5°
Bottom Bracket Drop 50mm (2.0") 50mm (2.0") 50mm (2.0") 50mm (2.0")
Est. Bottom Bracket Height 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4") 29: 320mm (12.6"), 27.5+: 313mm (12.4")
Rear Center Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5")
Front Center 696mm (27.4") 732mm (28.8") 768mm (30.2") 802mm (31.6")
Wheel Base 1141mm (45.4") 1177mm (46.7") 1213mm (47.9") 1247mm (49.1")
Standover 741mm (29.2") 741mm (29.2") 782mm (30.8") 782mm (30.8")

A Rebellious Hardtail

FORCE-RESPONSE FRAME

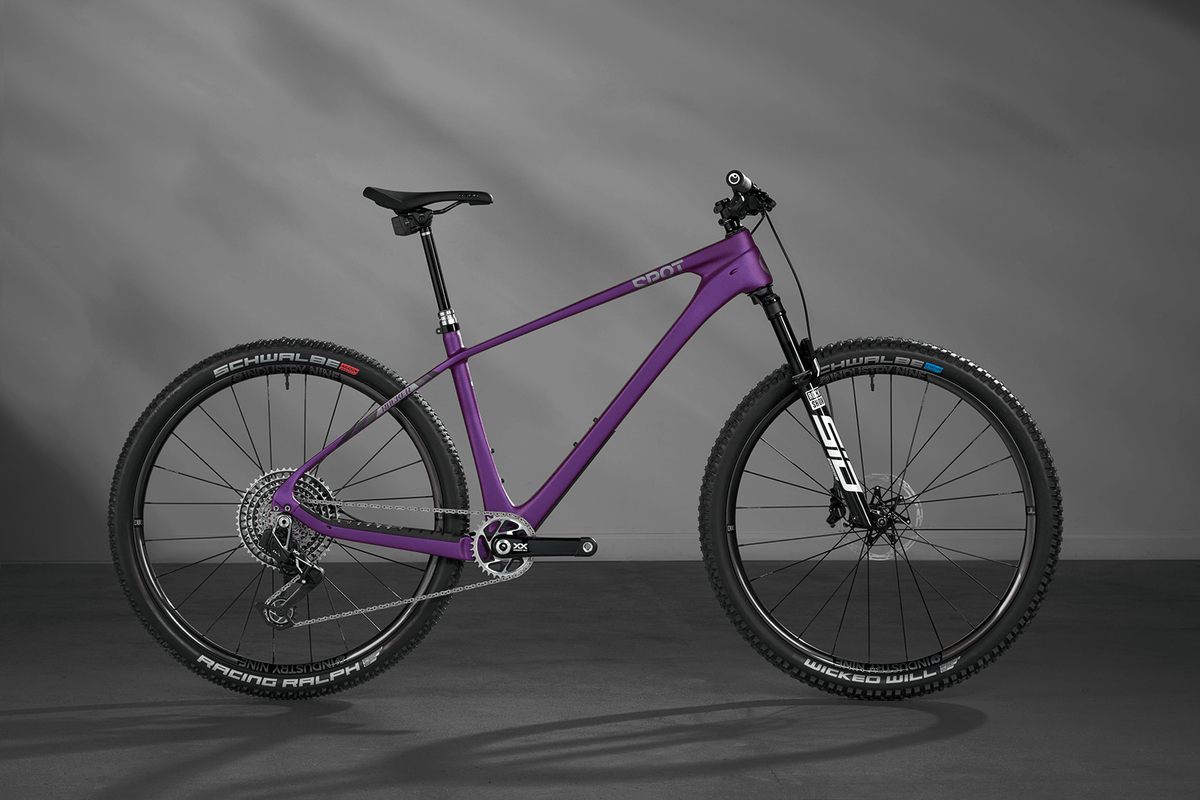

Modern Geometry

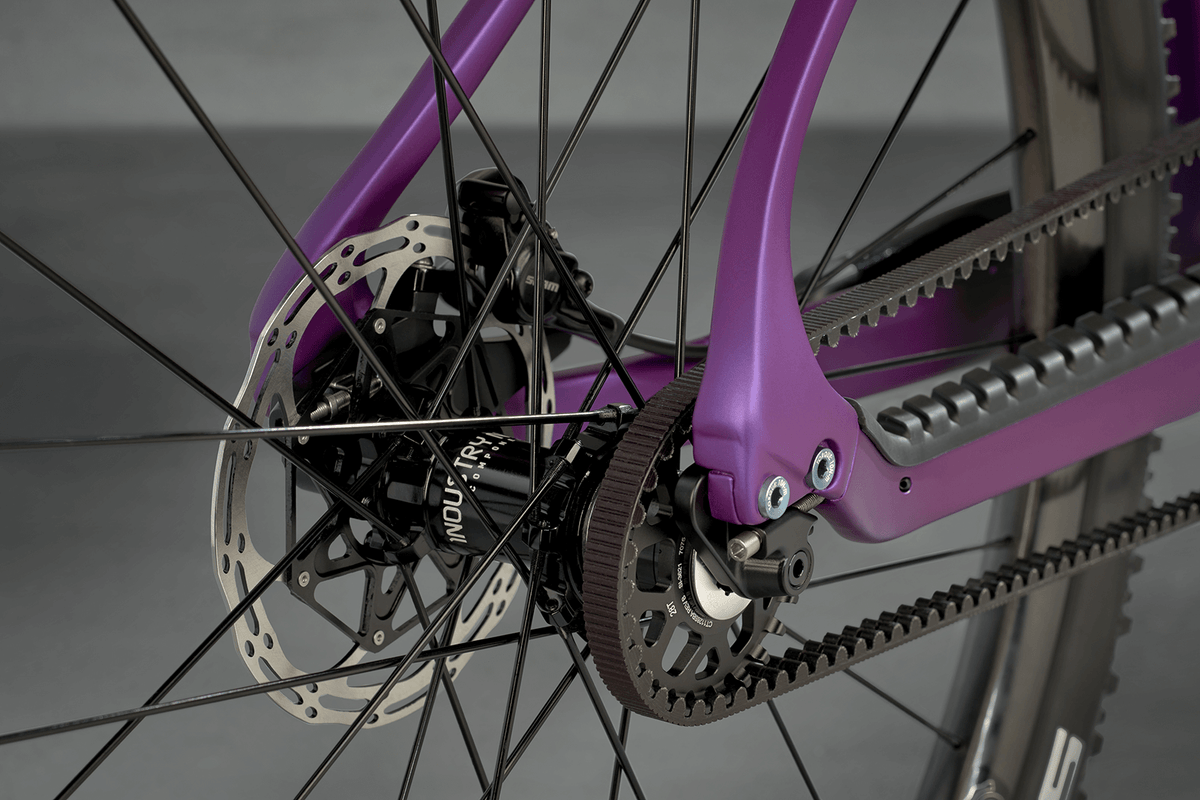

Kobe Slider 3 Dropouts

Plus or 29

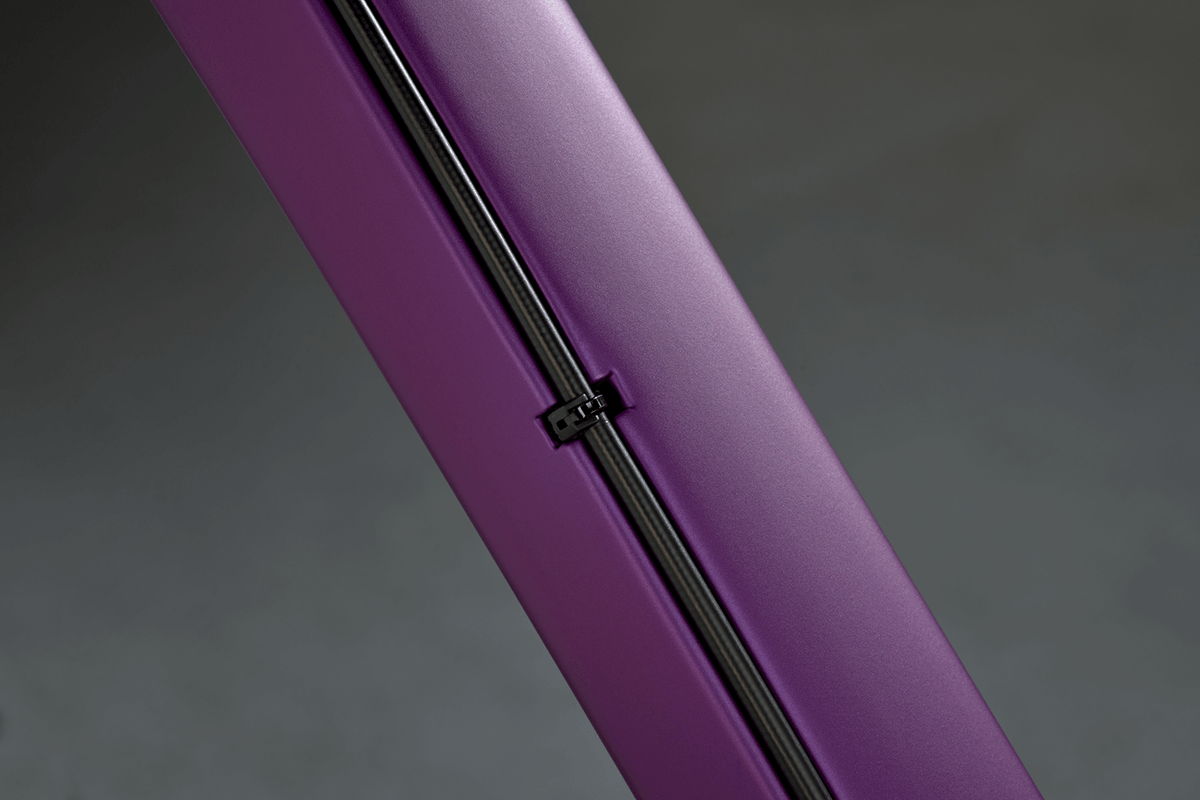

Groovy Guides

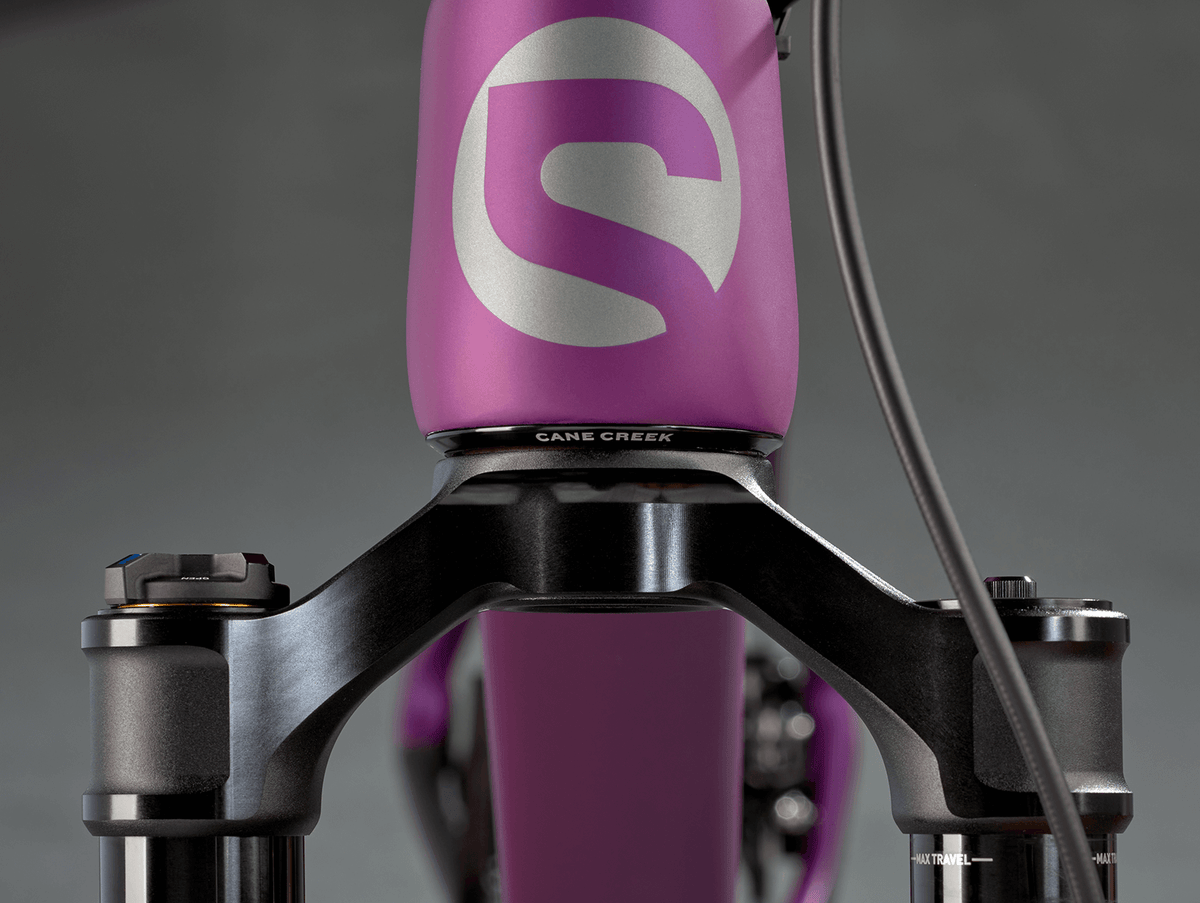

Lifetime Warranty

FROM THE TRAIL

average rating 5.0 out of 5
Based on 73 reviews
  • 5 Stars
    72 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
73 Reviews
Reviewed by Antonio C.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Hot Tomato

Love my red geared rocker. Comfortable and responsive. Glad I upgraded to this rocket!

Loading...
Was this helpful?
Reviewed by Kyle D.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

2023 SPOT Rocker Geared - ASX

This is an incredible tool for the job of going very quickly and looking great doing it! I had zero experience riding a SPOT prior to purchase, delivery and assembly… and first ride - Wow is an understatement. I have a top-tier Tri-bike and this SPOT frame and feel is at least a solid feeling. I cannot wait to acclimate to the hardtail and really work up to speed. This bike is just so beautiful in person (my added bonus for sure)

Loading...
Was this helpful?
Reviewed by Samuel B.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Spot rocker is awesome

Love this bike. I am 5’10” with 32 inch inseam and got a size large. The 180 mm dropper post was too long and the folks at Spot swapped it right away for a 160 mm post. Now fits perfectly. Great bike and great customer service.

Loading...
Was this helpful?
Reviewed by Mark H.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great customer support

When I received the bike it was smashed in shipping. I contacted spot with pics and they had another frame shipped out that day so I could swap it out. They even pre installed the bottom bracket and head set bearing to make my job easier. Great customer service to go with a great bike.

The bike is fantastic. It corners predictably and accelerates like a rocket and is surprisingly good in the rock gardens. Almost exactly what I need in my area, Austin, Tx.

Loading...
Was this helpful?
Reviewed by John R.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Actually Rocker SS Frameset

This replaced m y Yeti Arc that i had set up as a SS. I built this up as a SS w a 130 Fox 34 fork. Most excellent geo. bike handles like a dream. transmits power to the ground like mad. I was a little leary about the longer wheelbase but not an issue whatsoever. When i stand the rear wheel hooks up nicely. Very stable on the descents but nimble on the switchbacks. A Keeper!

Loading...
Was this helpful?
