SRAM X1 Eagle, B148, DUB, 175mm, 46t
Gates CDX CenterTrack 46t, Gates CDX CenterTrack SL 28t
Gates CDX CenterTrack 118t, Black
RockShox SID Select, 35, 120mm travel, Charger RL, 44mm Rake, Boost 15x110
29: Stan's No Tubes Crest S2 29, Tubeless, 6-Bolt, Boost 15x110
29: Stan's No Tubes Crest S2 29, Tubeless, HG, 6-Bolt, Boost 12x148
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
SRAM Level TL, 180mm Centerline Rotor, 6-Bolt
SRAM Level TL, 160mm Centerline Rotor, 6-Bolt
Race Face Aeffect, 35 x 60mm
Race Face Aeffect, 35mm, XL 780mm, LG 760, MD 740mm, SM 740mm, 20mm rise, Alloy
Spot Lock-On
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6
SDG Bel-Air V3
SRAM X1 Eagle B148, DUB 175mm, 46t
Gates CDX CenterTrack 46t, Gates CDX CenterTrack SL 28t
Gates CDX CenterTrack 118t, Black
RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110
DT Swiss | M1900 SPLINE | 15x110 | 29” | 6-Bolt
DT Swiss | M1900 SPLINE | 12x148 | 29” | XD | 6-Bolt
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
SRAM Level TLM, 180mm Centerline rotor, 6-Bolt
SRAM Level TLM, 160mm Centerline rotor, 6-Bolt
Race Face Turbine R, 60mm
OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm
Spot Lock-On
BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6
SDG Bel-Air V3
SRAM XX SL Eagle, B148, DUB, 170mm SM/MD 175mm LG/XL, 46t
Gates CDX CenterTrack 46t, Gates CDX CenterTrack SL 28t
Gates CDX CenterTrack 118t, Black
RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110
Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110
Industry Nine UL300 29, 24h, Tubeless, HG, 6-Bolt, Boost 12x148
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline X rotor, 6-bolt
SRAM Level Ultimate Stealth, 2-piston, 160mm Centerline X rotor, 6-Bolt
Race Face Turbine R, 60mm
OneUp, XL 780mm, LG 760mm, MD 740mm, SM 740mm
Spot Lock-On
Sram AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6
SDG Bel-Air V3
| 4-Star Build Level | 5-Star Build Level | 6-Star AXS Build Level | |
| Weight (lbs.) | S: 21.3, M: 21.5, L: 21.6, XL: 21.7 | S: 20.7, M: 20.9, L: 21.0, XL: 21.1 | S: 19.7, M: 19.9, L: 20.0, XL: 20.1 |
| Fork | RockShox SID Select, 35mm stanchions, 120mm travel, Charger RL, 44mm Rake, Boost 15x110 | RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110 | RockShox SID Ultimate 3P D1, 35mm stanchions, 120mm travel, Charger Race Day 2, Debonair+, 44mm Rake, Boost 15x110 |
| Headset | Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower | Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower | Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower |
| Crankset | SRAM X1 Eagle, B148, DUB, 175mm, 46t | SRAM X1 Eagle, B148, DUB, 175mm, 46t | SRAM XX SL Eagle, B148, DUB, 170mm SM/MD 175mm LG/XL, 46t |
| Sprockets | Gates CDX CenterTrack 46t, Gates CDX CenterTrack SL 28t | Gates CDX CenterTrack 46t, Gates CDX CenterTrack SL 28t | Gates CDX CenterTrack 46t, Gates CDX CenterTrack SL 28t |
| Bottom Bracket | SRAM DUB BSA MTB73 | SRAM DUB BSA MTB73 | SRAM DUB BSA MTB73 |
| Front Brake | SRAM Level TL, 180mm Centerline Rotor, 6-Bolt | SRAM Level TLM, 180mm Centerline rotor, 6-Bolt | SRAM Level Ultimate Stealth, 2-piston, 180mm Centerline X rotor, 6-Bolt |
| Rear Brake | SRAM Level TL, 160mm Centerline Rotor, 6-Bolt | SRAM Level TLM, 160mm Centerline rotor, 6-Bolt | SRAM Level Ultimate Stealth, 2-piston, 160mm Centerline X rotor, 6-Bolt |
| Belt | Gates CDX CenterTrack 118t, Black | Gates CDX CenterTrack 118t, Black | Gates CDX CenterTrack 118t, Black |
| Front Wheel | Stan's No Tubes Crest S2 29, Tubeless, 6-Bolt, Boost 15x110 | DT Swiss | M1900 SPLINE | 15x110 | 29” | 6-Bolt | Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110 |
| Rear Wheel | Stan's No Tubes Crest S2 29, Tubeless, XD, 6-Bolt Boost 12x148 | DT Swiss | M1900 SPLINE | 12x148 | 29” | XD | 6-Bolt | Industry Nine UL300 29, 24h, Tubeless, HG, 6-Bolt, Boost 12x148 |
| Front Tire | 29: Schwalbe Wicked Will 29x2.4 | 29: Schwalbe Wicked Will 29x2.4 | 29: Schwalbe Wicked Will 29x2.4 |
| Rear Tire | 29: Schwalbe Racing Ralph 29x2.25 | 29: Schwalbe Racing Ralph 29x2.25 | 29: Schwalbe Racing Ralph 29x2.25 |
| Stem | Race Face Aeffect, 35mm x 60mm | Race Face Turbine R, 35mm x 60mm | Race Face Turbine R, 35mm x 60mm |
| Handlebar | Race Face Aeffect, 35mm, XL 780mm, LG 760mm, MD/SM 740mm, 20mm rise, Alloy | OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon | OneUp, XL 780mm, LG 760mm, MD/SM 740mm, 25mm rise, 31.8mm Carbon |
| Grips | Spot Lock-On | Spot Lock-On | Spot Lock-On |
| Seat Post | BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 | BikeYoke Revive 185mm for XL and Large, 160mm for Medium, and 125mm for Small, Internal, 31.6 | Sram AXS 170mm for XL and Large, 150mm for Medium, and 125mm for Small, Wireless, 31.6 |
| Saddle | SDG Bel-Air V3 | SDG Bel-Air V3 | SDG Bel-Air V3 |
See this diagram for an explanation of Rocker geometry terms.
| Frame Size | Small | Medium | Large | X-Large |
| Reach | 410mm (16.1") | 440mm (17.3") | 470mm (18.5") | 500mm (19.7") |
| Stack | 607mm (23.9") | 621mm (24.4") | 635mm (25.0") | 644mm (25.4") |
| Eff. Top Tube Length | 567mm (22.3") | 601mm (23.7") | 634mm (25.0") | 667mm (26.3") |
| Seat Tube Length | 380mm (15.0") | 410mm (16.1") | 460mm (18.1") | 510mm (20.1") |
| Head Tube Length | 90mm (3.5") | 105mm (4.1") | 120mm (4.7") | 130mm (5.1") |
| Head Tube Angle | 67.0° | 67.0° | 67.0° | 67.0° |
| Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| Bottom Bracket Drop | 50mm (2.0") | 50mm (2.0") | 50mm (2.0") | 50mm (2.0") |
| Est. Bottom Bracket Height | 320mm (12.6") | 320mm (12.6") | 320mm (12.6") | 320mm (12.6") |
| Rear Center | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") |
| Front Center | 696mm (27.4") | 732mm (28.8") | 768mm (30.2") | 802mm (31.6") |
| Wheel Base | 1141mm (45.4") | 1177mm (46.7") | 1213mm (47.9") | 1247mm (49.1") |
| Standover | 741mm (29.2") | 741mm (29.2") | 782mm (30.8") | 782mm (30.8") |
See this diagram for an explanation of Rocker geometry terms.
| Frame Size | Small | Medium | Large | X-Large |
| Reach | 410mm (16.1") | 440mm (17.3") | 470mm (18.5") | 500mm (19.7") |
| Stack | 607mm (23.9") | 621mm (24.4") | 635mm (25.0") | 644mm (25.4") |
| Eff. Top Tube Length | 567mm (22.3") | 601mm (23.7") | 634mm (25.0") | 667mm (26.3") |
| Seat Tube Length | 380mm (15.0") | 410mm (16.1") | 460mm (18.1") | 510mm (20.1") |
| Head Tube Length | 90mm (3.5") | 105mm (4.1") | 120mm (4.7") | 130mm (5.1") |
| Head Tube Angle | 67.0° | 67.0° | 67.0° | 67.0° |
| Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| Bottom Bracket Drop | 50mm (2.0") | 50mm (2.0") | 50mm (2.0") | 50mm (2.0") |
| Est. Bottom Bracket Height | 320mm (12.6") | 320mm (12.6") | 320mm (12.6") | 320mm (12.6") |
| Rear Center | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") | Min: 438mm (17.2"), Max: 453mm (17.8"), As shipped: 445mm (17.5") |
| Front Center | 696mm (27.4") | 732mm (28.8") | 768mm (30.2") | 802mm (31.6") |
| Wheel Base | 1141mm (45.4") | 1177mm (46.7") | 1213mm (47.9") | 1247mm (49.1") |
| Standover | 741mm (29.2") | 741mm (29.2") | 782mm (30.8") | 782mm (30.8") |
This new version of the Rocker welcomes revisions that continue the model’s legacy as the most versatile advanced carbon hardtail on the planet. The addition of SRAM T-Type compatibility modernizes the timeless legend, while unchanged geometry numbers ensure the same spirited on-trail personality that Rocker fans appreciate.
Rocker’s all-carbon frame has one of the best strength-to-weight ratios in the industry. We carefully engineered tube shapes and layup patterns to create a super playful ride, offer a low standover height, and accommodate full-length dropper posts for unencumbered maneuverability. The bike takes advantage of longer, slacker geometry, without sacrificing the nimbleness that makes hardtails such sensational handlers.
Short seatstays place the rider’s weight squarely over the rear wheel for uphill traction, with clearance for big tires. And with moderate, intentionally un-endurofied geometry, the Rocker is a beacon for modern hardtail lovers looking for a capable trail machine that perfectly blends the speed and snappiness of a race rocket with a healthy appetite for adventure.
Spot’s patented Kobe 3 Slider Dropouts offer modularity that enable the bike to be swapped between geared and belt-driven single-speed setups in a stiffer, quieter, lighter, more compact and secure design than anything else on the market. With three separately available kits, Rocker V2 can be run with SRAM Transmission, a traditional derailleur, or in full-on masochistic single-speed mode.
The Rocker frame was designed based on detailed analysis and testing, both in the lab and on the trail. The frame shape is driven by a Force-Response design philosophy that maximizes strength and durability, and focuses material in areas where it is most needed. Beefy chainstays handle huge power loads and prevent flex, keeping the belt straight and true when run as a singlespeed. Svelte seatstays provide comfort in the saddle. The large box section downtube streamlines power transfer between the handlebars and pedals, while the trim top tube saves weight, lowers the center of mass, and provides easy stand-over clearance.
The Rocker is a modern hardtail that is light enough to race and burly enough for hard-charging descenders. The roomy reach, relaxed headtube angle and short chainstays create balance and instill the confidence to get after it.
Our patented Kobe Slider Dropouts are the lightest, most compact, and easiest to adjust chain-or belt-drive-optimized sliding dropouts on the market. They offer 15mm of slider throw, an inboard brake mount for better protection, and precise adjustments capabilities for optimal tension.
With clearance for a 29x 2.4" rear tire, the Rocker can be tailored to any terrain and rider preference.
Our Groovy Guides integrate the rear brake line into the tube, providing a clean look while also offering easier access than internal cable routing. Groovy Guides make it easy to service what may be the most important cable on your bike, while also keeping it out of the way and eliminating snags.
We design and test our frames to the highest standards so you can be confident in your investment. Should you have an issue with your Spot frame, we will warranty it against manufacturing defects for the lifetime of the frame. Of course there's some fine print (read here), but if you buy a bike and ride it as it is intended to be ridden, we've got your back. And if you do get into a fender-bender, we have a fantastic crash replacement program as well.
About 50 miles in and can't imagine life without it. I'm in moderate shape and still just have a blast on this thing. Yes it's harder but in a doable way. It brings joy back into the grind, I am convinced this is the most satisfying form of biking. Buy it. No need to hesitate.
Having always wanted to try a belt drive I finally pulled the trigger on a new Rocker last month. Fully built up with my existing parts from my old steel SS my new XL Rocker came in at a svelte 20.5 lbs!!! I have been riding a TI and a steel SS for several years and have enjoyed both, so I was hesitant to go carbon due to ride quality. My impressions after back to back 20+ mile 2000+ feet of climbing rides.
1) The power transfer to the rear wheel is incredible... like driving a stick shift rather than a slushy automatic.
2) Intuitive! I always struggle to adapt to new bikes, so I expected that this would be tough, especially with the first race of the Kenda Cup next weekend. I have to say, this is the easiest most predictable bike that I have ever ridden. The bike tracks rally well in tight turns (even as an XL) and I saw my Strava segment times improve by about 3 seconds per minute. Being that I have ridden these segments a million times, this was incredible to me.
3) Yes, it is a little stiffer in the seat stays, but I use a Gravel dropper that gives you about 3/8" (or so) travel when its not locked out, so it was fine.
I love it so much that I just ordered a 150mm Mayhem frame in hopes that their Enduro bike will have some of the handling DNA!!
The 2024 Spot Rocker Single Speed, built to the 6-Star spec with Gates Belt Drive and ZIPP 1ZERO HITOP SW wheels, is a revelation. As a 52-year-old expert rider with 30+ years of experience across various cycling disciplines, I was initially skeptical about getting back on a hardtail. However, this bike quickly won me over with its incredible agility and surprising capability on technical terrain. The geometry seems to match my riding style very well.
At 22 lbs with pedals and cages, the Rocker SS is remarkably light. This translates to fast climbs and a playful feel on the trail. The Gates Belt Drive system is incredibly smooth and quiet, eliminating chain noise and significantly reducing maintenance.
The ZIPP 1ZERO HITOP SW wheels are a standout feature. They are incredibly light and surprisingly compliant, offering a comfortable ride over rough terrain. Combined with the Schwalbe Racing Ralph and Wicked Will tires, which provide excellent traction and cornering grip, the bike feels incredibly fast and efficient.
Highlights:
Exceptional handling: Agile and capable on technical terrain, despite the lack of rear suspension.
Lightweight and efficient: Climbs with ease and feels incredibly fast on the trail.
Quiet and smooth operation: Gates Belt Drive eliminates chain noise and requires minimal maintenance.
High-quality components: ZIPP wheels, Schwalbe tires, and a 6-Star build level ensure top-notch performance and durability.
Overall:
The Spot Rocker Single Speed is a…

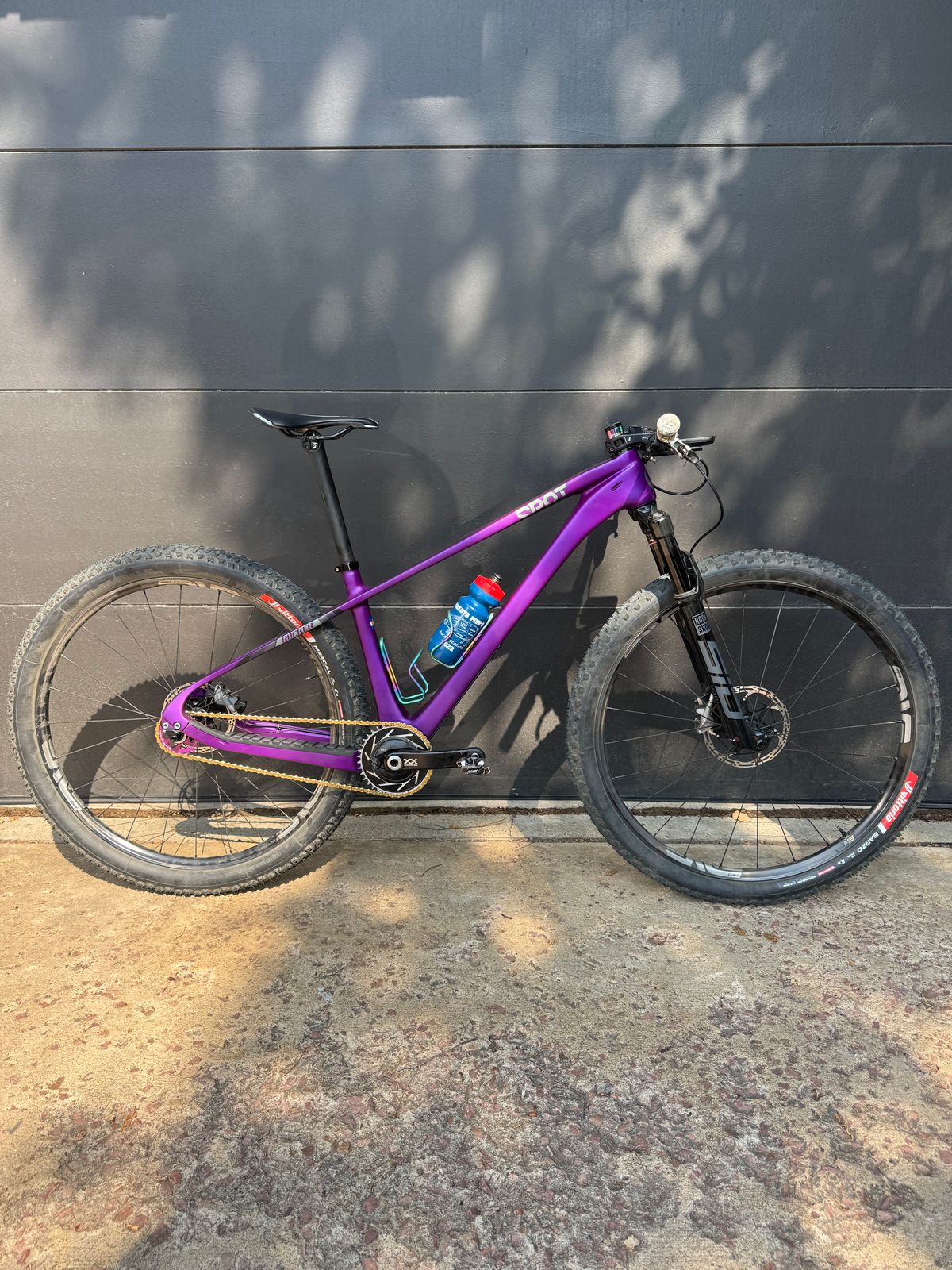

The Spot Rocker V2 is my fifth single-speed and I love it! The geometry is by far the best I’ve experienced with a nicely planted rear while climbing combined with great stability on the descents. My 6-star build is excellent with the RockShox SID Ultimate fork smoothing out the bumps, the Zipp 1Zero Hitop S carbon wheels spinning up quickly and providing a solid feel, Schwalbe tires gripping the trails, powerful SRAM Level Ultimate Stealth brakes slowing me down, and an oh so sweet SRAM AXS dropper post that’s the smoothest and quickest dropper I’ve ever used. I’ve always been intrigued by the Gates Belt Drive and it does not disappoint. It is smooth, quiet, efficient and as I’ve learned during my research, will provide years of performance with minimal maintenance. I’m having a lot of fun getting to know the Rocker and look forward to many years on this one. Would I change anything? May shorten the handlebar a bit, install some Ergon bar end grips and perhaps pick up a rear cog with 2 more teeth as my strength ain’t what it use to be. Thank you Spot for making a great bike, and now I’m intrigued by the Mayhem after looking at the great reviews it is getting. Keep up the good work!
So far I love my new bike, it’s light, fast and sturdy. I bought it with a carbon Envy fork for the full rigid experience.
