★★★★★ (4.9 avg) / 2,100+ Reviews | Read the Testimonials SPOT VALUE MATCH GUARANTEE: FIND A COMPARABLE BIKE FOR LESS? WE'LL MATCH IT. Use your HSA/FSA for your next bike using Truemed! JOIN SPOT REWARDS

Diggity 125
Rated 5.0 out of 5
Based on 7 reviews

$5,858 $6,299

Payments available with . Learn more

Lazuli Blue // main image // Featured

View the Geometry

Diggity 125
Rated 5.0 out of 5
Based on 7 reviews

$5,858 $6,299

Geometry View Kit Details
Size
Find Your Size
Select Height to See Suggestion
Specs View Kit Details
Color Specs
Lazuli Blue
Talus Grey
30.1 lb View Kit Details

$5,858 $6,299

PICK YOUR BUILD LEVEL

View Component Comparison Table

Drive Train

Crankset

SRAM S1000 | 170mm | 30t

Cassette

SRAM GX Eagle | XS-1275 | 10-52

Derailleur

SRAM Eagle 90 | T-Type | Full Mount | 12-speed

Shift Lever

SRAM Eagle 90 Transmission Shifter

Chain

SRAM GX Transmission Flattop | Silver

Suspension

Shock

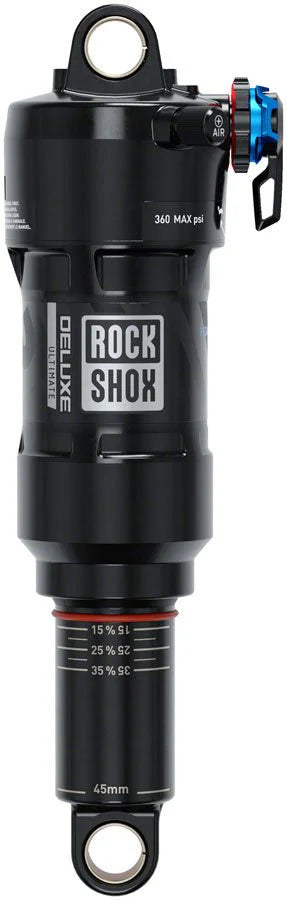

Rockshox Deluxe Ultimate | 190x45mm

Fork

Rockshox Pike Select | 140mm

Wheel Set

Front Wheel

DT Swiss | M1900 SPLINE | 15x110 | 29” | 6-Bolt

Rear Wheel

DT Swiss | M 1900 SPLINE | 29" | 12x148 | XD | 6-bolt

COMPONENTS

Headset

Cane Creek 50, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Motive Bronze | 200mm Centerline Rotor

Rear Brake

SRAM Motive Bronze | 180mm Centerline Rotor

Stem

Race Face Aeffect | 40mm

Handlebar

Race Face Aeffect R

Grips

ODI Elite Pro Lock-On

Seat Post

BikeYoke Revive | 31.6mm

Saddle

SDG Bel-Air V3

*spec is subject to change.

Drive Train

Crankset

SRAM S1000 | 170mm | 30t

Cassette

SRAM GX Eagle | XS-1275 | 10-52

Rear Derailleur

SRAM GX AXS Transmission | Wireless

Rear Shifter Lever

SRAM AXS Pod Controller, 12-speed, Wireless

Chain

SRAM GX Eagle Transmission, Flattop, Silver

Suspension

Shock

Rockshox Deluxe Ultimate | 190x45mm

Fork

Rockshox Pike Select | 140mm

Wheel Set

Front Wheel

DT Swiss | M1900 SPLINE | 15x110 | 29” | 6-Bolt

Rear Wheel

DT Swiss | M 1900 SPLINE | 29" | 12x148 | XD | 6-bolt

COMPONENTS

Headset

Cane Creek 50, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Motive Bronze | 200mm HS2 6-Bolt Rotor

Rear Brake

SRAM Motive Bronze | 200mm HS2 6-Bolt Rotor

Stem

Race Face Aeffect | 40mm

Handlebar

OneUp Aluminum

Grips

ODI Elite Pro Lock-On

Seat Post

BikeYoke Revive | 31.6mm

Saddle

SDG Bel-Air V3

*spec is subject to change.

Drive Train

Crankset

SRAM XX Eagle Transmission | 70mm | 30t

Cassette

SRAM CS1297, XX Eagle Transmission, 10-52

Rear Derailleur

SRAM XX Eagle AXS Transmission, 12-Speed, Wireless

Rear Shifter Lever

SRAM AXS Pod Controller, 12-speed, Wireless

Chain

SRAM XX Eagle, Flattop, Black

Suspension

Shock

Rockshox Deluxe Ultimate | 190x45mm

Fork

Rockshox Pike Ultimate | 140mm

Wheel Set

Front Wheel

Industry Nine Solix Whisp Carbon | Silver Hub & Spokes | 28H | 15x110

Rear Wheel

Industry Nine Solix Whisp Carbon | Silver Hub & Spokes | 32H | 12x148

COMPONENTS

Headset

Cane Creek 50, ZS44/ZS56 ZS44 upper, ZS56 lower

Front Brake

SRAM Motive Ultimate | 200mm HS2 Centelock Rotor

Rear Brake

SRAM Motive Ultimate | 180mm HS2 Centerlock Rotor

Stem

Race Face Aeffect 40mm

Handlebar

OneUp V2 Carbon

Grips

ODI Elite Pro Lock-On

Seat Post

RockShox Reverb AXS B1 | 31.6mm

Saddle

SDG Bel-Air V3

*spec is subject to change.

Frame 4-Star Build Level 5-Star Build Level 6-Star Build Level
Weight (lbs.) S: 5.1 | M: 5.2 | L: 5.3 | XL: 5.4 S: 30.1 | M: 30.2 | L: 30.3 | XL: 30.4 S: 29.3 | M: 29.4 | L: 29.5 | XL: 29.6 S: 28.2 | M: 28.3 | L: 28.4 | XL: 28.5
Shock Rockshox Deluxe Ultimate | 190x45 Rockshox Deluxe Ultimate | 190x45 Rockshox Deluxe Ultimate | 190x45 Rockshox Deluxe Ultimate | 190x45
Fork NA Rockshox Pike Select | 140mm | Maxle Stealth Axle Rockshox Pike Select | 140mm | Maxle Stealth Axle Rockshox Pike Ultimate | 140mm | Maxle Stealth Axle
Headset NA Cane Creek 50 | ZS44/ZS56 ZS44 upper | ZS56 lower Cane Creek 50 | ZS44/ZS56 ZS44 upper | ZS56 lower Cane Creek 50 | ZS44/ZS56 ZS44 upper | ZS56 lower
Crankset NA SRAM S1000 Eagle | 170mm | 30t | 55mm Chainline SRAM S1000 Eagle | 170mm | 30t | 55mm Chainline SRAM XX Transmission | 170mm | 30t | 55mm Chainline
Cassette NA SRAM | GX Eagle | XS-1275 | T-Type | 10-52 SRAM GX | Eagle | XS-1275 | T-Type | 10-52 SRAM XX Transmission | CS1297 | 10-52
Derailleur NA SRAM Eagle 90 Transmission SRAM GX AXS Transmission SRAM XX AXS Transmission
Shift Lever NA SRAM Eagle 90 Transmission SRAM AXS Pod Right MMX SRAM AXS Pod Right MMX
Bottom Bracket NA SRAM DUB BSA 73mm Threaded SRAM DUB BSA 73mm Threaded SRAM DUB BSA 73mm Threaded
Front Brake NA SRAM Motive Bronze | 200mm Centerline 6-Bolt Rotor SRAM Motive Bronze | 200mm HS2 6-Bolt Rotor SRAM Motive Ultimate | 200mm HS2 Centerlock Rotor
Rear Brake NA SRAM Motive Bronze | 180mm Centerline 6-Bolt Rotor SRAM Motive Bronze | 180mm HS2 6-Bolt Rotor SRAM Motive Ultimate | 180mm HS2 Centerlock Rotor
Chain NA SRAM GX Transmission Flattop | Silver SRAM GX Transmission Flattop | Silver SRAM XX Eagle | Silver
Front Wheel NA DT Swiss | M 1900 SPLINE | 29” | 15x110 | 6-Bolt DT Swiss | M 1900 SPLINE | 29” | 15x110 | 6-Bolt Industry Nine Solix Whisp Carbon | 29” | 15x110 | Custom Silver Hub & Spokes
Rear Wheel NA DT Swiss | M 1900 SPLINE | 29” | 12x148 | XD | 6-Bolt DT Swiss | M 1900 SPLINE | 29” | 12x148 | XD | 6-Bolt Industry Nine Solix Whisp Carbon | 29” | 12x148 | Custom Silver Hub & Spokes
Front Tire NA Schwalbe Romy Race | 29x2.4 Schwalbe Romy Race | 29x2.4 Schwalbe Romy Race | 29x2.4
Rear Tire NA Schwalbe Romy Race | 29x2.4 Schwalbe Romy Race | 29x2.4 Schwalbe Romy Race | 29x2.4
Stem NA Race Face Aeffect | 40mm | 35mm Clamp Race Face Aeffect | 40mm | 35mm Clamp Race Face Aeffect | 40mm | 35mm Clamp
Handlebar NA Race Face Aeffect R | 35mm Clamp | 20mm Rise | Sweep: 8 ° Back | 5° Up | XL: 780mm | LG: 780mm | MD: 780mm | SM: 760mm OneUp Aluminum | 35mm Clamp | Sweep: 8 ° Back | 5° Up | SM: 20mm Rise, Cut to 760mm Width | MD: 20mm Rise, Cut to 780mm Width | LG & XL: 35mm Rise, 800mm Width OneUp V2 Carbon | 35mm Clamp | Sweep: 8 ° Back | 5° Up | SM: 20mm Rise, Cut to 760mm Width | MD: 20mm Rise, Cut to 780mm Width | LG & XL: 35mm Rise, 800mm Width
Grips NA ODI Elite Pro Lock-On ODI Elite Pro Lock-On ODI Elite Pro Lock-On
Seat Post NA BikeYoke Revive | 31.6mm | 185mm for XL and Large | 160mm for Medium | 125mm for Small BikeYoke Revive | 31.6mm | 185mm for XL and Large | 160mm for Medium | 125mm for Small Rockshox Reverb AXS B1 | 31.6mm | AXS Pod Left MMX | 175mm for XL & Large | 150mm for Medium | 125mm for Small
Saddle NA SDG Bel-Air V3 SDG Bel-Air V3 SDG Bel-Air V3

See this diagram for an explanation of Diggity 125 geometry terms.

Frame Size Small Medium Large X-Large
Reach 415mm (16.3") 445mm (17.5") 475mm (18.7") 505mm (19.9")
Stack 600mm (23.6") 615mm (24.2") 630mm (24.8") 645mm (25.4")
Head Tube Angle 65.2° 65.2° 65.2° 65.2°
Effective Seat Tube Angle 76.5° 76.5° 77.0° 77.5°
Actual Seat Tube Angle 72.7° 72.7° 73.3° 73.8°
Rear Center 435mm (17.1") 435mm (17.1") 435mm (17.1") 435mm (17.1")
Wheelbase 1158mm (45.6") 1195mm (47.1") 1232mm (48.5") 1265mm (49.8")
BB Drop 39mm (1.5") 39mm (1.5") 39mm (1.5") 39mm (1.5")
BB Height 337mm (13.3") 337mm (13.3") 337mm (13.3") 337mm (13.3")
Seat Tube Length 370mm (14.6") 400mm (15.7") 440mm (17.3") 480mm (18.9")
Standover Height 727mm (28.6") 727mm (28.6") 726mm (28.6") 726mm (28.6")
Eff. Top Tube Length 559mm (22.0") 593mm (23.3") 620mm (24.4") 658mm (25.9")
Head Tube Length 84mm (3.3") 100mm (3.9") 117mm (4.6") 126mm (5.0")

Diggity 125 Geometry

See this diagram for an explanation of Diggity 125 geometry terms.

Frame Size Small Medium Large X-Large
Reach 415mm (16.3") 445mm (17.5") 475mm (18.7") 505mm (19.9")
Stack 600mm (23.6") 615mm (24.2") 630mm (24.8") 645mm (25.4")
Head Tube Angle 65.2° 65.2° 65.2° 65.2°
Effective Seat Tube Angle 76.5° 76.5° 77.0° 77.5°
Actual Seat Tube Angle 72.7° 72.7° 73.3° 73.8°
Rear Center 435mm (17.1") 435mm (17.1") 435mm (17.1") 435mm (17.1")
Wheelbase 1158mm (45.6") 1195mm (47.1") 1232mm (48.5") 1265mm (49.8")
BB Drop 39mm (1.5") 39mm (1.5") 39mm (1.5") 39mm (1.5")
BB Height 337mm (13.3") 337mm (13.3") 337mm (13.3") 337mm (13.3")
Seat Tube Length 370mm (14.6") 400mm (15.7") 440mm (17.3") 480mm (18.9")
Standover Height 727mm (28.6") 727mm (28.6") 726mm (28.6") 726mm (28.6")
Eff. Top Tube Length 559mm (22.0") 593mm (23.3") 620mm (24.4") 658mm (25.9")
Head Tube Length 84mm (3.3") 100mm (3.9") 117mm (4.6") 126mm (5.0")

A DECADE OF LIVING LINK

The perfect human-powered trail bike, distilled.

The perfect human-powered trail bike, distilled.

Introducing the Diggity 125. Our tenth bike built around Spot's Living Link suspension system, and the most refined yet. Every aspect focused on removing distraction, maximizing confidence, and letting you push harder.

Every line, every detail, designed with intention to create the most pure expression of a modern mountain bike. With handling so effortless that intuition takes over, you don't chase the flow state on the Diggity. It finds you.

While you're in the zone, the third-generation Living Link silently delivers superior grip, incredible bump sensitivity, deep mid-stroke control, and the most efficient climbing platform we've ever engineered. No lockout lever required. No doubt.

Hammer climbs. Rip descents. Cover all the ground. Ten years in, we've gotten good at this.

SHOP NOW

RIDE CHARACTER

ALIVE UNDER YOU

Ground-hovering speed, instinctive flow, and cornering that rewires what you thought a trail bike could do.

ALIVE UNDER YOU

The Diggity accelerates effortlessly, corners on a thought, holds traction through chunder and carries speed through the pucker. With a touchdown feel that makes the trail go quiet and an energetic pop off every lip, the Diggity will have you hunting for every sneaker hit.

Climbing's hard. That's why we engineer ways to make it less hard. Stomp the pedals out of the saddle and the Diggity answers like an XC bike. Power through tech sections and it tracks like it's reading the trail in advance. The kinematics dish out the right amount of suspension in every situation. Enough to keep the rear tire glued through roots and ledges. Never so much that you feel power loss. All automatically. Lockout not required.

Pointed downhill, the Diggity finds usable travel where you need it, supports when pushed into a corner, pops on demand, and stays composed when the trail gets unruly. It rewards charging and chilling, smashing and slashing, boosting and squashing. It rewards mountain biking.

Our third generation Living Link platform provides better power delivery, traction, sensitivity and support than ever before. Read More

Product Preview
Compression Rebound
Handle
0% 25% 50% 75% 100% 75% 50% 25% 0%

FRAME ENGINEERING

EVERY OUNCE EARNS IT

Game by the pound.

A frame is more than a stack of tubes. The way forces travel through it, the way mass is distributed across it, and the way it carries water, gear, and the rider all add up to how the bike feels under you. We engineered the Diggity around three ideas — and then took material away from anywhere that wasn't earning its keep.

FORCE FLOW — A FRAME THAT SHARES THE LOAD

FORCE FLOW — A FRAME THAT SHARES THE LOAD

The Slaybar architecture lets the down tube and seat tube share the loads coming out of the shock and linkage. Forces get focused into the central frame sections instead of dumped at the tips, so the middle of the bike is the stiffest part — a longbow-style flex distribution that puts material where it's working and removes it where it isn't. It's the best strength-to-frame-weight ratio we've ever built.

MASS CENTRALIZATION — PULLED IN, DROPPED LOW

MASS CENTRALIZATION — PULLED IN, DROPPED LOW

The Diggity's suspension system is condensed and pulled toward the center of the bike. Aluminum hardware is pared down to its minimum form. Front and rear triangles use small, slim sections. Every move is in service of two things — minimizing total mass and lowering the center of gravity. The bike that comes out the other side is more nimble, more responsive, and more agile under the rider.

PACKAGING — ROOM FOR EVERYTHING THAT MATTERS

PACKAGING — ROOM FOR EVERYTHING THAT MATTERS

Bottle access is generous. Bigger bottles fit. There's dedicated space below the Slaybar for an accessory mount that comes off the bike when you don't need it. Standover is low across all four sizes. Every rider gets the same packaging benefits regardless of frame size.

FRAME DETAILS

BUILT FOR THE LONG HAUL

The choices that make a bike easy to own.

SPROCKLOCK PIVOT AXLES

SPROCKLOCK PIVOT AXLES

Pivots stay tight and quiet because that's a non-negotiable. SprockLock replaces friction-based pivot hardware with a true mechanical interlock — a splined axle and a locking cap that key directly into the frame so nothing can back out under load. Fewer parts. Simpler service. Failsafe. And because all pivot fasteners are accessed from the non-drive side, the drive-side stays clean — uninterrupted lines and almost no visible hardware.

SIX BEARINGS. ALL THE SAME. ALL EXTERNAL.

SIX BEARINGS. ALL THE SAME. ALL EXTERNAL.

The Diggity rides on six pivot bearings — Enduro dual-row full-complement, all the same size, all mounted in the links rather than pressed into the frame. Every bearing also gets an external secondary seal to keep moisture and grit out of the race. Service is simpler, parts inventory is smaller, and the frame itself never sees a bearing bore. That's how it should be.

MOLDED CHAINSTAY & DOWNTUBE PROTECTION

MOLDED CHAINSTAY & DOWNTUBE PROTECTION

Custom molded rubber, shaped to the Diggity's chainstay, chainstay bridge, and downtube. It deadens chain slap, quiets trail chatter, and protects paint in the most vulnerable zones.

A FRAME PACK MADE FOR THIS FRAME

A FRAME PACK MADE FOR THIS FRAME

We worked locally with JPaks — a Colorado craftsman hand-stitching purpose-built bikepacking gear — on a custom frame pack tailored to the exact shape of a space inside the Diggity's main triangle. It bolts on without straps, mounts low, sits flush, and doesn't take up any bottle real estate. Comes off in seconds when you don't need it. Bespoke. Exactly what you need, nothing you don't.

Available soon, only from Spot.

CABLES, MANAGED

CABLES, MANAGED

Nobody does cable ports cleaner than this. Instead of molding metal threads into carbon to cinch port covers down, we came up with something more elegant — a single fastener ties both sides of the port together and threads directly into the drive-side cover. Less material. More reliability. Port covers are interchangeable to fit any common cable configuration. No doubt.

TRAIL-READY DETAILS

TRAIL-READY DETAILS

Threaded BB. ISCG tabs. Generous tire clearance for proper rubber. Shorter seat tubes with more insertion, to maximize dropper lengths across sizes. Compatible with how you ride.

A decade in. The most refined Living Link bike we've built. Yours, whenever you're ready.

Hot diggity.

BUILD YOURS ↑

FROM THE TRAIL

average rating 5.0 out of 5
Based on 7 reviews
  • 5 Stars
    7 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
7 Reviews
Reviewed by Ethan F.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Hot Diggity

It's crazy how good bikes are and this "Dig" is no exception. This bike will pretty much cover all riding disciplines with exceptional ease. Fast uphill with-out having to mess with lock outs, super fun playful descending, and you didn't forget to unlock it, cause it wasn't lock in the first place!

I've had all the Spot bikes from 2016 and this one is right on target as the Mayhem 140's little sister. I've been asked why bother with the M140 since the travel is kinda close. But it is a different ride and the M140 rides bigger than its travel number suggests. In my humble opinion the M140 fits a wider comfort range for bigger descending style rides yet climbs better than most 130mm bikes. While the Diggity accommodates longer style rides that may have the same type of descending but its all-round quickness, even more ease of climbing and overall lighter tighter package that takes precedent. Think high alpine rides and long Buffalo Creek rides but descents are actually fun vs a true XC style bike. The shorter travel just takes the efficiency of the Living Link to the next level for a "Down County" (yes, I said it) bike. It's just fast!

Build wise the bike can be a 26lb Whippet or a 30lb Greyhound, take your pick! I've got a bunch of rides and the potential for speed is a little nuts. My original thought of the Whippet build might slowly move to a light Greyhound build, cause she wants to run!

For transparency I'm a long time friend of Spot and even used to sell them in…

Loading...
Was this helpful?
Reviewed by Gary P.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

SPOT On!!

I have been a long-time SPOT Bikes customer, and while every SPOT I have owned has been an exceptional bike, the SPOT Diggity 125 is a step above—even for SPOT, which is a bold statement!

I was fortunate enough to demo the Diggity 125 in early July (THANKS, RYAN!), and after just one ride, I knew I wanted to own one. Proof is in the pudding—and I highly encourage you to demo one for yourself. Just a word of warning: if you ride the Diggity 125, there is a very good chance you are going to want to buy it!

For those familiar with the SPOT lineup, the Diggity 125 feels like the perfect combination of the Ryve and the Mayhem. It climbs with the efficiency and responsiveness of the Ryve while descending with the confidence and capability of the Mayhem. The SPOT design team somehow managed to take the best characteristics of both bikes and blend them into one incredible riding machine.

What really sets the Diggity 125 apart, though, is the overall riding experience. It is incredibly responsive, efficient, playful, and confident. It climbs exceptionally well without sacrificing its ability to charge downhill, and it has that rare quality that makes you want to keep riding just to experience what the bike can do next. Words honestly don't do justice to how good this bike feels on the trail.

I HIGHLY, HIGHLY recommend the Diggity 125. There are certainly a lot of great mountain bikes on the market, but the Diggity delivers an exceptional combination of performance, quality, and…

Loading...
Was this helpful?
Reviewed by Todd B.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great bike for a banged up rider

I demoed the Diggity after a night at Red Rocks and was not in top form that morning. I took it to Lair O’ The Bear out & back and Rutabaga downhill which I had ridden the day before on my Mayhem 130. The Diggity was a delight to ride on a foggy morning for me. It’s by far the best pedaling full suspension I’ve ridden and it ate up the downhill with ease. The Diggity is an absolute rocket up and down the trail and I plan to purchase one in the near future. If you’ve been considering a Spot, this is the one to do it all. The blue color looks great in person by the way.

Loading...
Was this helpful?
Reviewed by Brad G.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

I'm a convert!

This is my 1st Spot. I've had 3 Santa Cruz, a Cannondale and few other brands along my MTB journey. Had thought of myself as a Santa Cruz guy until now. This is the smoothest bike I've ever ridden! The Diggity turns up the fun factor both climbing and rip'n down. Climbs are efficient, controlled and provide more power getting over technical sections. Downhill the Diggity just want to give you more. My rides are longer, less fatiguing and full of smiles, what more could I ask.

Loading...
Was this helpful?
Reviewed by Hank P.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

An Honest Review from a Serial Bike Flipper

The N+0 Bike (Just mountain bikes. I'm not insane.)

I've been waiting for this bike.

Full transparency: I've always loved the SPOT platform and the Living Link suspension. I've owned early generations of the Mayhem and the Ryve, and while they were both great bikes, I realized I wasn't really waiting for those. I was waiting for the Diggity.

While I waited, I did what any reasonable mountain biker does. I bought and sold, in order, a Spur, Epic, S-Works Stumpjumper, Smuggler, and Allied BC40. Every one of them was good. Some were great. None of them made me stop looking.

I think the bike industry needs a new category for the Diggity. And let's be honest, the bike industry has never met a new category it didn't like.

I'm calling this XT: XC on the way up, Trail on the way down. Or maybe Up Trail. Marketing departments, you're welcome. Pretty sure ”Downcountry” is dead anyway.

I live in Park City, where you can connect hundreds of miles of trail into one 2hr ride. My perfect loop has a long, steady climb with just enough tech to keep you honest, transitions into a little chunky singletrack, and finishes with one of Deer Valley's fast flow trails.

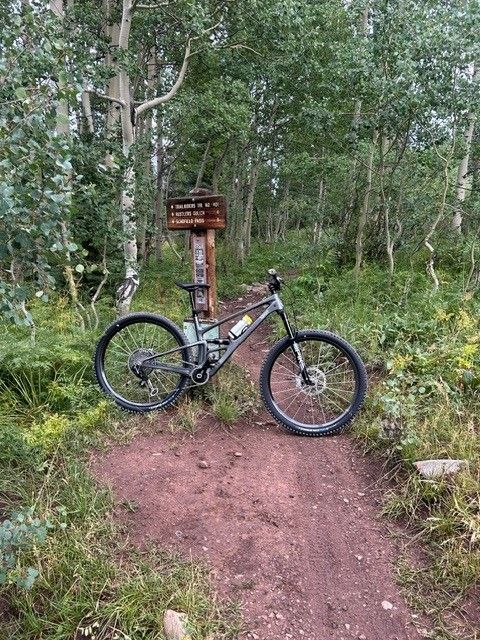

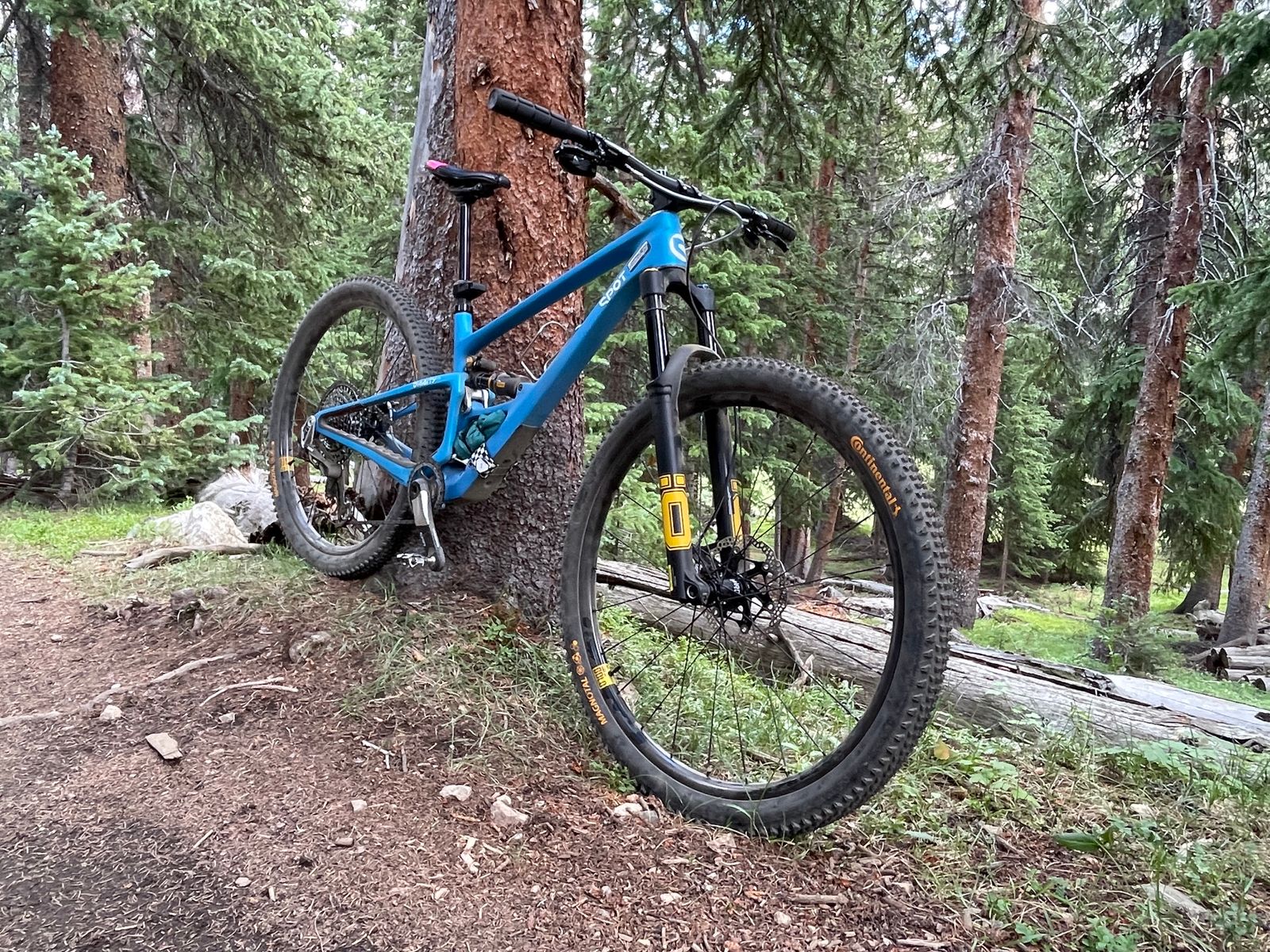

The Diggity feels like it was built specifically for that ride.

It climbs like a homesick angel. Not in the "this is pretty good for a trail bike" kind of way. It just climbs. It rewards you for standing, rewards you for spinning, and somehow makes you forget you're pedaling a bike that's this much fun on the descent.

Point it…

Loading...
Was this helpful?

#SPOTBIKES

x
